VLMRGB6112 Series
Manufacturer: Vishay Semiconductor Opto Division
Beta
⌘K

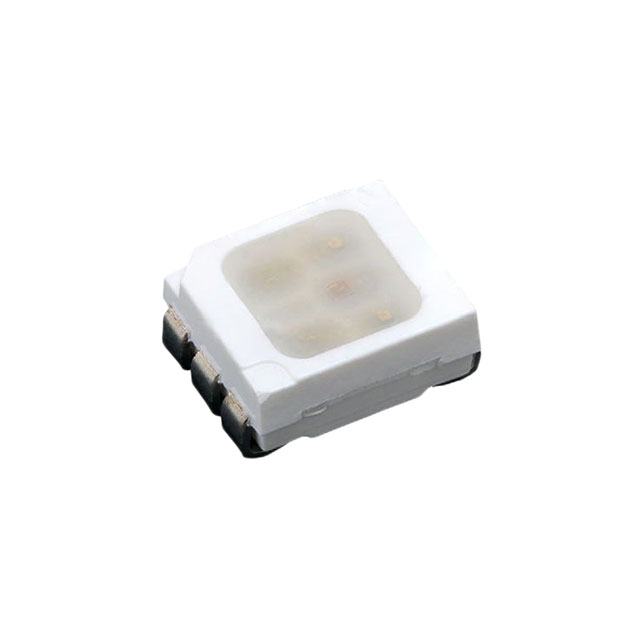

LED RGB DIFFUSED 6PLCC SMD
| Part | Grade | Wavelength - Peak [custom] | Wavelength - Peak [custom] | Wavelength - Peak [custom] | Lens Size [y] | Lens Size [x] | Height (Max) [Max] [z] | Package / Case | Supplier Device Package | Lens Style | Current - Test | Color | Millicandela Rating [custom] | Millicandela Rating [custom] | Millicandela Rating [custom] | Wavelength - Dominant | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | Lens Color | Voltage - Forward (Vf) (Typ) | Lens Transparency | Qualification | Configuration | Viewing Angle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay Semiconductor Opto Division | Automotive | 518 nm | 468 nm | 630 nm | 2.2 mm | 2 mm | 1.65 mm | 6-PLCC | 6-PLCC | Rectangle with Flat Top | 20 mA | Blue Green Red | 1030 mcd | 730 mcd | 240 mcd | 469 nm 526 nm 624 nm | 2.8 mm | 3.2 mm | Surface Mount | Colorless | 2 V 3 V 3.1 V | Diffused | AEC-Q101 | Independent | 120 ° |
