P260T Series

Catalog

POT 100K OHM 1/2W PLASTIC LINEAR

Part	Size - Body [x]	Size - Body [x]	Size - Body [y]	Size - Body [y]	Termination Style	Resistive Material	Actuator Length [x]	Actuator Length [x]	Number of Gangs	Resistance (Ohms)	Rotation	Actuator Type	Taper	Mounting Type	Adjustment Type	Power (Watts)	Power (Watts)	Bushing Thread	Features	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Built in Switch	Number of Turns	Tolerance	Size - Body [z]	Size - Body [z]	Resistance (Ohms)

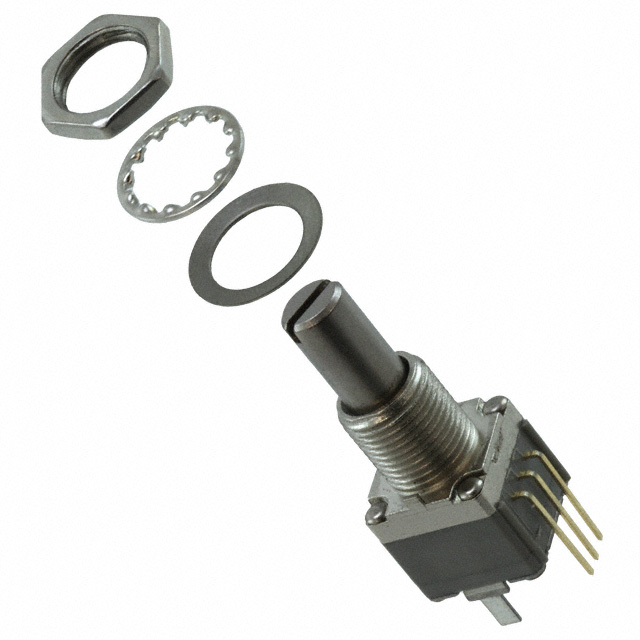

TT Electronics/BI P260T-D1BS3CB100K	0.5 "	12.7 mm	0.5 "	12.7 mm	PC Pins	Conductive Plastic	0.787 in	20 mm	1	100k	295 °	Slotted	Linear	Panel Mount	Top Adjustment	0.5 W	0.5 W	3/8-32	Sealed	6.35 mm	0.25 in	None	1	10 %
TT Electronics/BI P260T-S1BS4CB10K	0.5 "	12.7 mm	0.5 "	12.7 mm	PC Pins	Conductive Plastic	0.945 in	24 mm	1	10k	295 °	Slotted	Linear	Panel Mount	Top Adjustment	0.5 W	0.5 W	3/8-32	Sealed	6.35 mm	0.25 in	None	1	10 %
TT Electronics/BI P260T-S1AF1DB100K	0.5 "	12.7 mm	0.5 "	12.7 mm	PC Pins	Conductive Plastic	0.472 in	12 mm	1	100k	295 °	Flatted	Linear	Panel Mount	Top Adjustment	0.5 W	0.5 W	1/4-32	Sealed	3.2 mm	0.126 in	None	1	10 %
TT Electronics/BI P260T-D1BS4CB10K	0.5 "	12.7 mm	0.5 "	12.7 mm	PC Pins	Conductive Plastic	0.945 in	24 mm	1	10k	295 °	Slotted	Linear	Panel Mount	Top Adjustment	0.5 W	0.5 W	3/8-32	Sealed	6.35 mm	0.25 in	None	1	10 %
TT Electronics/BI P260T-S1BS3CA10K	0.5 "	12.7 mm	0.5 "	12.7 mm	PC Pins	Conductive Plastic	0.787 in	20 mm	1	10k	295 °	Slotted	Logarithmic	Panel Mount	Top Adjustment	0.25 W	0.25 W	3/8-32	Sealed	6.35 mm	0.25 in	None	1	10 %
TT Electronics/BI P260T-D1BF4DB10K	0.5 "	12.7 mm	0.5 "	12.7 mm	PC Pins	Conductive Plastic	0.945 in	24 mm	1	10k	295 °	Flatted	Linear	Panel Mount	Top Adjustment	0.5 W	0.5 W	3/8-32	Sealed	6.35 mm	0.25 in	None	1	10 %
TT Electronics/BI P260T-S1BF3CB10K	0.5 "	12.7 mm	0.5 "	12.7 mm	PC Pins	Conductive Plastic	0.787 in	20 mm	1	10k	295 °	Flatted	Linear	Panel Mount	Top Adjustment	0.5 W	0.5 W	3/8-32	Sealed	6.35 mm	0.25 in	None	1	10 %
TT Electronics/BI P260T-S1BS3CB10K	0.5 "	12.7 mm	0.5 "	12.7 mm	PC Pins	Conductive Plastic	0.787 in	20 mm	1	10k	295 °	Slotted	Linear	Panel Mount	Top Adjustment	0.5 W	0.5 W	3/8-32		6.35 mm	0.25 in	None	1	10 %	12.7 mm	0.5 "
TT Electronics/BI P260T-S1BF3DB1MEG	0.5 "	12.7 mm	0.5 "	12.7 mm	PC Pins	Conductive Plastic	0.787 in	20 mm	1		295 °	Flatted	Linear	Panel Mount	Top Adjustment	0.5 W	0.5 W	3/8-32	Sealed	6.35 mm	0.25 in	None	1	10 %			1 MΩ
TT Electronics/BI P260T-S1BF4DB10K	0.5 "	12.7 mm	0.5 "	12.7 mm	PC Pins	Conductive Plastic	0.945 in	24 mm	1	10k	295 °	Flatted	Linear	Panel Mount	Top Adjustment	0.5 W	0.5 W	3/8-32	Sealed	6.35 mm	0.25 in	None	1	10 %
