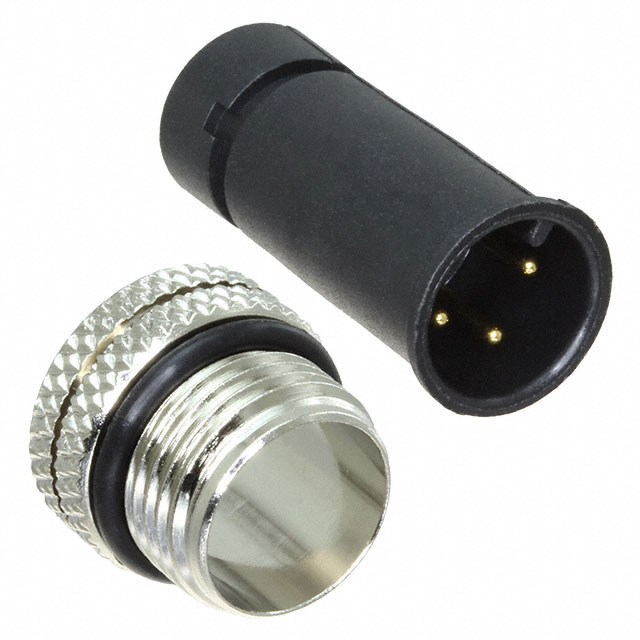

858-R03 Series
Manufacturer: NorComp Inc.
Beta
⌘K
CONN RCPT MALE 3POS SOLDER CUP
| Part | Shell Finish | Shielding | Cable Opening | Cable Opening | Contact Finish - Mating | Orientation | Shell Size - Insert | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness - Mating | Color | Material Flammability Rating | Ingress Protection | Voltage Rating | Primary Material | Applications | Shell Material | Current Rating (Amps) | Contact Material | Fastening Type | Connector Type | Insert Material | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Nickel | Unshielded | 0.37 in | 9.4 mm | Gold | A | M12-3 | 85 °C | -40 C | Flash | Black Silver | UL94 V-0 | IP67 - Dust Tight Waterproof | 250 V | Metal | Industrial Medical | Brass | 4 A | Brass | Threaded | Receptacle Male Pins | Polybutylene Terephthalate (PBT) | Free Hanging (In-Line) | ||
 NorComp Inc. | Nickel | Unshielded | 0.37 in | 9.4 mm | Gold | A | M12-3 | 85 °C | -40 C | Black Silver | UL94 V-0 | IP67 - Dust Tight Waterproof | 250 V | Metal | Industrial Medical | Brass | 4 A | Brass | Threaded | Receptacle Male Pins | Polybutylene Terephthalate (PBT) | Free Hanging (In-Line) | 0.25 µm | 10 µin |
