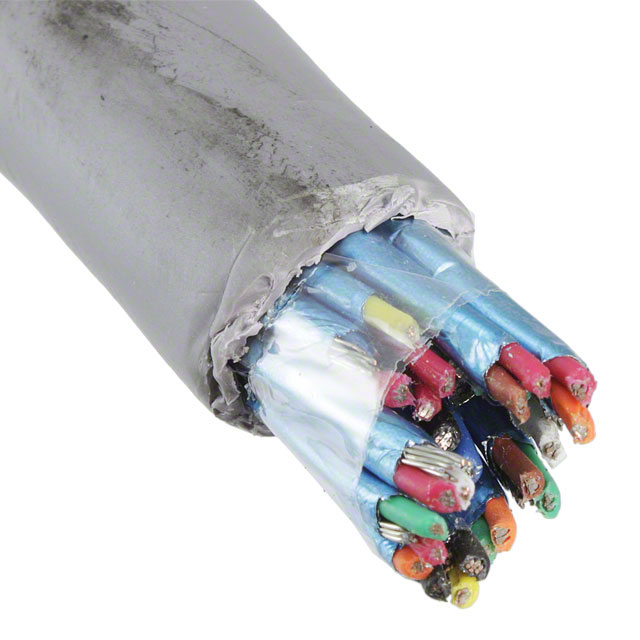

6019C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-PAIR 34COND 22AWG
| Part | Shield Coverage | Shield Material | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Length | Length | Jacket (Insulation) Material | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Conductor Material | Conductor Insulation | Usage | Voltage | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | Slate | -20 ░C | 60 °C | 1.6 mm | 0.063 in | 22 AWG | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | Foil | 30 AWG | 7 | 34 | Copper Tinned | Polypropylene (PP) | Communication Control | 300 VDC | Drain Wire | 0.593 " | 15.06 mm | Multi-Pair | ||
ALPHA WIRE | 100 % | Aluminum | Slate | -20 ░C | 60 °C | 1.6 mm | 0.063 in | 22 AWG | Poly-Vinyl Chloride (PVC) | Foil | 30 AWG | 7 | 34 | Copper Tinned | Polypropylene (PP) | Communication Control | 300 VDC | Drain Wire | 0.593 " | 15.06 mm | Multi-Pair | 100 ft | 30.5 m | ||
ALPHA WIRE | 100 % | Aluminum | Slate | -20 ░C | 60 °C | 1.6 mm | 0.063 in | 22 AWG | 152.4 m | 500 ft | Poly-Vinyl Chloride (PVC) | Foil | 30 AWG | 7 | 34 | Copper Tinned | Polypropylene (PP) | Communication Control | 300 VDC | Drain Wire | 0.593 " | 15.06 mm | Multi-Pair |
