2002-1551 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

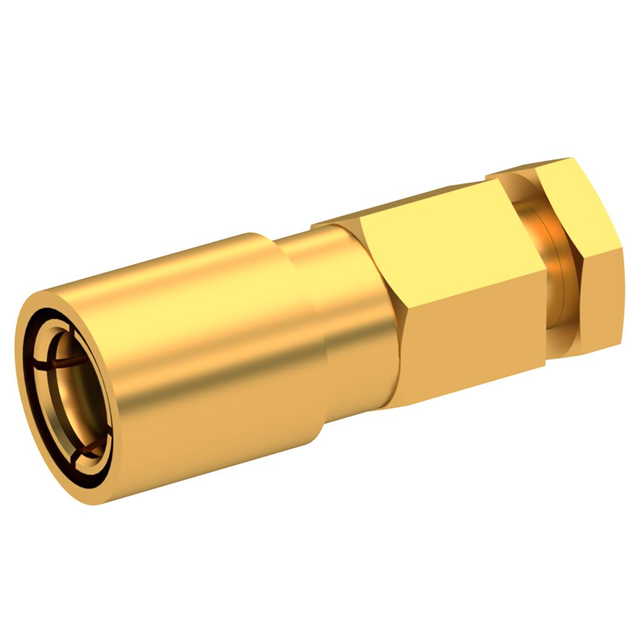

SMB F STR NA CL 2.6/50S
| Part | Body Material | Center Contact Plating | Body Finish | Voltage Rating | Mating Cycles | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Connector Style | Housing Color | Mounting Type | Frequency - Max [Max] | Impedance | Contact Termination | Cable Group | Cable Group | Shield Termination | Connector Type | Fastening Type | Center Contact Material | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Brass | Gold | Gold | 335 V | 500 | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | SMB | Gold | Free Hanging (In-Line) | 4 GHz | 50 Ohms | Solder | RG-174 | 316 | Clamp | Female Socket Plug | Snap-On | Beryllium Copper | 1 |
