BU14OZ Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

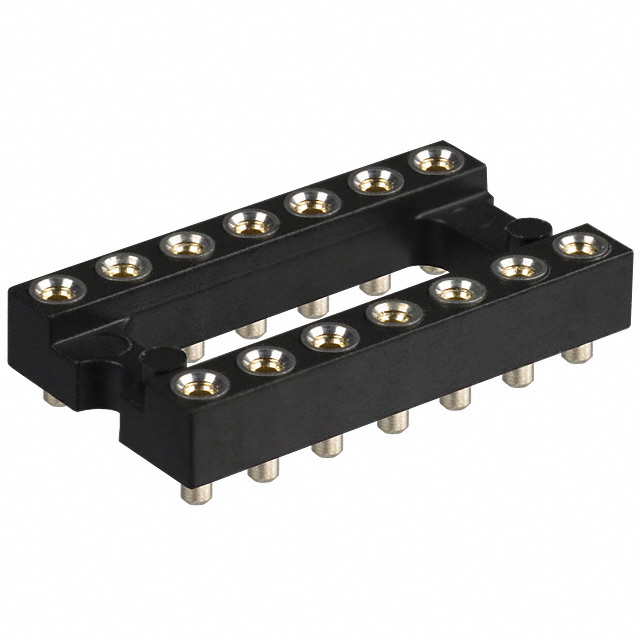

CONN IC DIP SOCKET 14POS GOLD
| Part | Contact Resistance | Termination Post Length | Termination Post Length | Material Flammability Rating | Current Rating (Amps) | Housing Material | Pitch - Post | Pitch - Post | Contact Finish - Post | Contact Material - Mating | Mounting Type | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Type | Type | Type | Termination | Features | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Pitch - Mating | Pitch - Mating | Contact Material - Post [custom] | Contact Finish Thickness - Post | Number of Positions or Pins (Grid) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 7 mOhm | 0.059 " | 1.5 mm | UL94 V-0 | 1 A | Polybutylene Terephthalate (PBT) Glass Filled | 0.1 in | 2.54 mm | Copper | Beryllium Copper | Surface Mount | Gold | -55 C | 125 °C | 7.62 mm | 0.3 in | DIP | Solder | Open Frame | 78.7 µin | 2 µm | 0.1 " | 2.54 mm | Brass | Flash | 14 |
