684M21W Series
Manufacturer: NorComp Inc.
Beta
⌘K

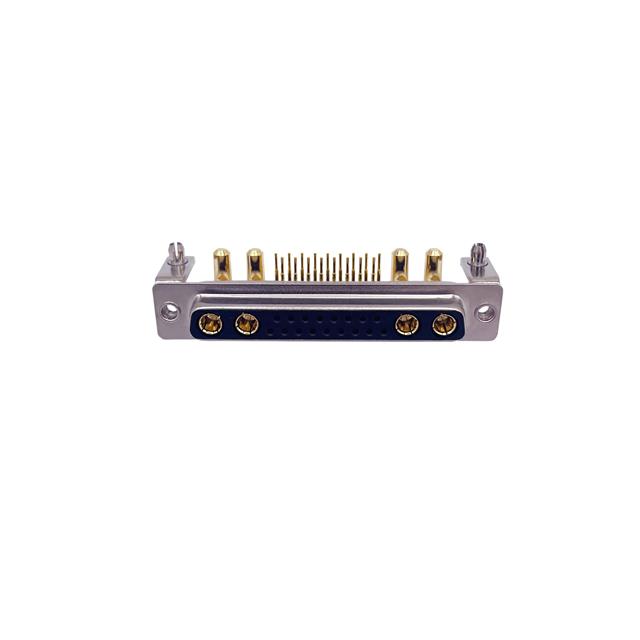

COMBO D-SUB CONN, PLUG, DC-21WA4, TH ROHS COMPLIANT: YES
| Part | Voltage Rating | Dielectric Material | Color | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Termination | Shell Size, Connector Layout | Connector Type | Mounting Type | Contact Finish Thickness | Current Rating (Amps) | Contact Type | Contact Finish | Shell Material, Finish | Material Flammability Rating | Backset Spacing | Backset Spacing | Flange Feature | Flange Feature | Connector Style | Number of Rows [custom] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | 250 V | Polybutylene Terephthalate (PBT) | Black | Copper Alloy | -55 C | 125 °C | 21 | Solder | 4 (DC C) - 21WA4 | Plug Male Pins | Board Edge Right Angle Through Hole | Flash | 5 A 40 A | Signal and Power | Gold | Nickel Plated Steel | UL94 V-0 | 9.4 mm | 0.37 in | Housing/Shell | 4-40 | Combo D-Sub | 2 | Board Lock Grounding Indents Mounting Brackets |
 NorComp Inc. | 250 V | Polybutylene Terephthalate (PBT) | Black | Copper Alloy | -55 C | 125 °C | 21 | Solder | 4 (DC C) - 21WA4 | Receptacle Female Sockets | Board Edge Right Angle Through Hole | Flash | 5 A 40 A | Signal and Power | Gold | Nickel Plated Steel | UL94 V-0 | 9.4 mm | 0.37 in | Housing/Shell | 4-40 | Combo D-Sub | 2 | Board Lock Mounting Brackets |
