81_MMBX Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K

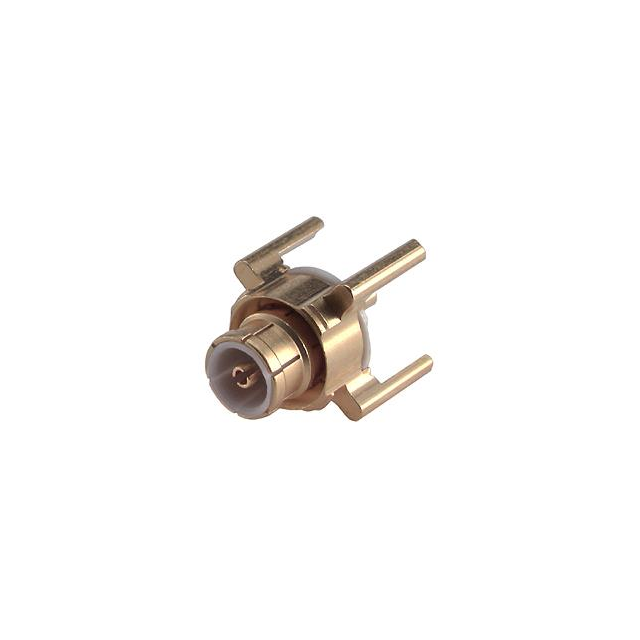

81_MMBX-50-0-2/111_NE
| Part | Body Material | Body Finish | Dielectric Material | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Material | Center Contact Plating | Mounting Type | Frequency - Max [Max] | Number of Ports | Impedance | Fastening Type | Connector Type | Shield Termination | Housing Color | Connector Style | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | Brass Bronze | Gold | Liquid Crystal Polymer (LCP) Perfluoroalkoxy (PFA) | 250 V | 155 C | -55 C | Beryllium Copper Brass | Gold | Through Hole | 12.4 GHz | 1 | 50 Ohms | Snap-On | Plug Male Pin | Solder | Gold | MMBX | Solder |
 Huber+Suhner, Inc. | Brass Bronze | Gold | Liquid Crystal Polymer (LCP) Perfluoroalkoxy (PFA) | 330 VDC | 155 C | -55 C | Beryllium Copper Brass | Gold | Through Hole | 12.4 GHz | 1 | 50 Ohms | Snap-On | Plug Male Pin | Solder | Gold | MMBX | Solder |
 Huber+Suhner, Inc. | Brass Bronze | Gold | Liquid Crystal Polymer (LCP) Perfluoroalkoxy (PFA) | 250 V | 155 C | -55 C | Beryllium Copper Brass | Gold | Surface Mount | 12.4 GHz | 1 | 50 Ohms | Snap-On | Plug Male Pin | Solder | Gold | MMBX | Solder |
 Huber+Suhner, Inc. | Brass Bronze | Gold | Polytetrafluoroethylene (PTFE) | 155 C | -55 C | Beryllium Copper Brass | Gold | Through Hole | 12.4 GHz | 1 | 50 Ohms | Snap-On | Plug Male Pin | Solder | Gold | MMBX | Solder | |
 Huber+Suhner, Inc. | Brass Bronze | Gold | Liquid Crystal Polymer (LCP) Perfluoroalkoxy (PFA) | 330 VDC | 155 C | -55 C | Beryllium Copper Brass | Gold | Surface Mount | 12.4 GHz | 1 | 50 Ohms | Snap-On | Plug Male Pin | Solder | Gold | MMBX | Solder |
