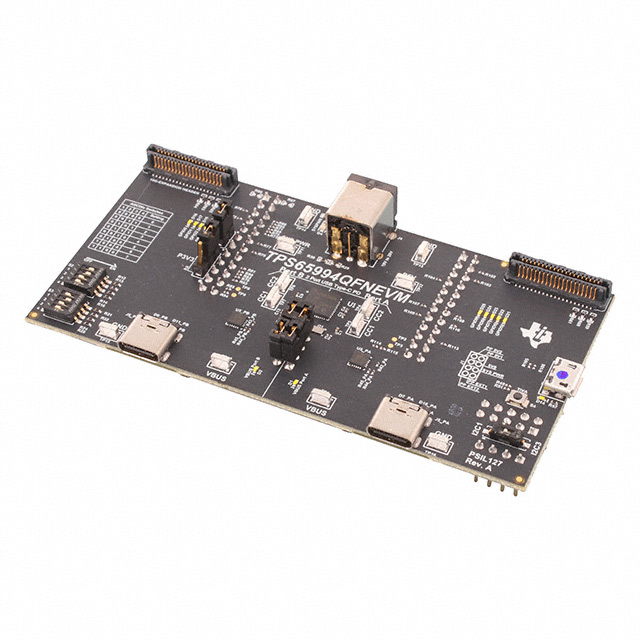

TPS65994AD Series
Dual port USB-C® Power Delivery controller with integrated source power switches
Manufacturer: Texas Instruments
Catalog
Dual port USB-C® Power Delivery controller with integrated source power switches
Key Features
• This device is certified by the USB-IF for PD3.0PD3.0 silicon is required for certification of new USB PD designsTID#: 3495Article onPD2.0 vs. PD3.0TPS65994AD is fully configurable dual port USB4 and Thunderbolt 4 (TBT4) PD3.0 controllerThis device can be used for USB4 host and device designsSupports extended industrial temperature rangeGUI tool to easily configure TPS65994AD for various applicationsSupport for DisplayPort Source, Thunderbolt and user configurable alternate modesFor a more extensive selection guide and getting started information, please refer towww.ti.com/usb-candE2E guideIntegrated fully managed power paths:Integrated two 5-V, 3-A, 38-mΩ sourcing switchesUL2367 cert #: E169910IEC62368-1 cert #: US-34737-M3-ULIntegrated robust power path protectionIntegrated overvoltage protection, under voltage protection, reverse current protection, and adjustable current limiting for source pathIntegrated overvoltage protection, under voltage protection and reverse current protection for sink pathUSB Type-C Power Delivery (PD) controller10 configurable GPIOsUSB PD 3.0 certifiedUSB Type-C specification certifiedCable attach and orientation detectionIntegrated VCONN switchIntegrated dead battery RdPhysical layer and policy engine3.3-V LDO output for dead battery supportPower supply from 3.3 V or VBUS source1 I2C primary port2 I2C secondary portsThis device is certified by the USB-IF for PD3.0PD3.0 silicon is required for certification of new USB PD designsTID#: 3495Article onPD2.0 vs. PD3.0TPS65994AD is fully configurable dual port USB4 and Thunderbolt 4 (TBT4) PD3.0 controllerThis device can be used for USB4 host and device designsSupports extended industrial temperature rangeGUI tool to easily configure TPS65994AD for various applicationsSupport for DisplayPort Source, Thunderbolt and user configurable alternate modesFor a more extensive selection guide and getting started information, please refer towww.ti.com/usb-candE2E guideIntegrated fully managed power paths:Integrated two 5-V, 3-A, 38-mΩ sourcing switchesUL2367 cert #: E169910IEC62368-1 cert #: US-34737-M3-ULIntegrated robust power path protectionIntegrated overvoltage protection, under voltage protection, reverse current protection, and adjustable current limiting for source pathIntegrated overvoltage protection, under voltage protection and reverse current protection for sink pathUSB Type-C Power Delivery (PD) controller10 configurable GPIOsUSB PD 3.0 certifiedUSB Type-C specification certifiedCable attach and orientation detectionIntegrated VCONN switchIntegrated dead battery RdPhysical layer and policy engine3.3-V LDO output for dead battery supportPower supply from 3.3 V or VBUS source1 I2C primary port2 I2C secondary ports
Description
AI
The TPS65994AD is a highly integrated stand-alone Dual Port USB Type-C and Power Delivery (PD) controller for PC and notebooks applications. The TPS65994AD integrates fully managed source paths with robust protection for a complete USB-C PD solution. TPS65994AD is featured on Intel and AMD’s Reference Design for PC and notebook end equipment ensuring the PD controller has proper system level interaction in these types of designs. This feature greatly reduces system design complexity and results in reduced time to market.
The TPS65994AD is a highly integrated stand-alone Dual Port USB Type-C and Power Delivery (PD) controller for PC and notebooks applications. The TPS65994AD integrates fully managed source paths with robust protection for a complete USB-C PD solution. TPS65994AD is featured on Intel and AMD’s Reference Design for PC and notebook end equipment ensuring the PD controller has proper system level interaction in these types of designs. This feature greatly reduces system design complexity and results in reduced time to market.
