8333 Series
Manufacturer: Belden Inc.
Beta
⌘K

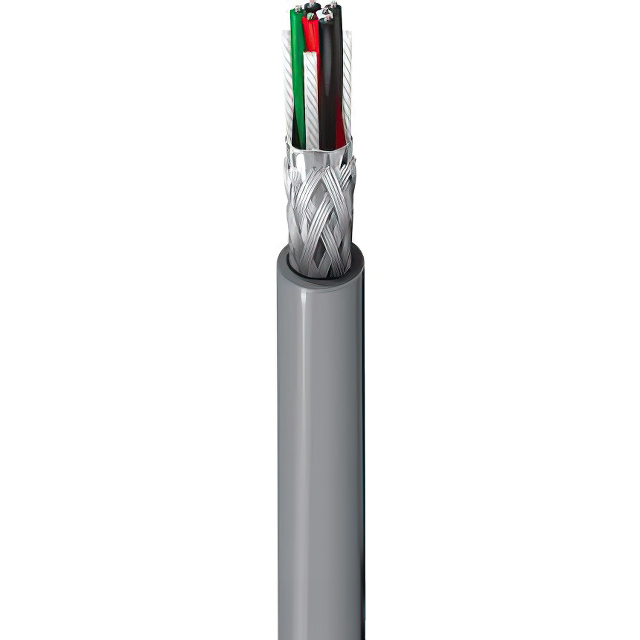

MULTI-PAIR 6COND 24AWG CHROME
| Part | Shield Material | Shield Coverage | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Jacket Color | Length [x] | Length [x] | Cable Type | Conductor Insulation | Conductor Material | Wire Gauge | Usage | Ratings | Voltage | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Braid Foil | 0.035 in | 0.889 mm | 6.73 mm | 0.265 in | 80 °C | -30 ░C | 6 | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | Chrome | 100 ft | 30.5 m | Multi-Pair | Poly-Vinyl Chloride (PVC) | Copper Tinned | 24 AWG | Computer | UL Style 2464 | |||
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Braid Foil | 0.035 in | 0.889 mm | 6.73 mm | 0.265 in | 80 °C | -30 ░C | 6 | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | Chrome | Multi-Pair | Poly-Vinyl Chloride (PVC) | Copper Tinned | 24 AWG | Computer | UL Style 2464 | 300 VDC | 152.4 m | 500 ft |
