MSP430FR2433 Series

16 MHz MCU with 16KB FRAM, 4KB SRAM, 10-bit ADC, UART/SPI/I2C, timer

Catalog

16 MHz MCU with 16KB FRAM, 4KB SRAM, 10-bit ADC, UART/SPI/I2C, timer

Part	RAM Size	Supplier Device Package	Connectivity	Package / Case	Core Processor	Number of I/O	Program Memory Type	Mounting Type	Speed	Data Converters [custom]	Data Converters [custom]	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Core Size	Operating Temperature [Max]	Operating Temperature [Min]	Oscillator Type	Program Memory Size
Texas Instruments MSP430FR2433IRGER	4K x 8	24-VQFN (4x4)	I2C IrDA SCI SPI UART/USART	24-VFQFN Exposed Pad	MSP430 CPU16	19	FRAM	Surface Mount	16 MHz	8	10	1.8 V	3.6 V	16-Bit	85 °C	-40 °C	Internal	15.5 KB

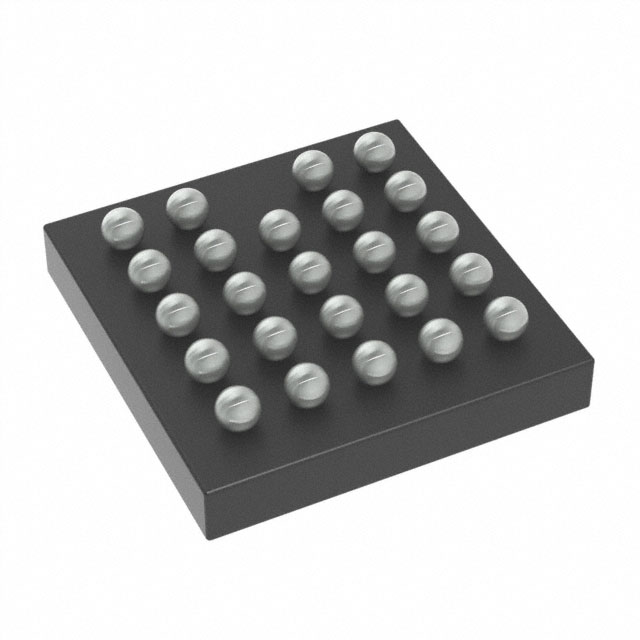

Texas Instruments MSP430FR2433IYQWT	4K x 8	24-DSBGA	I2C IrDA SCI SPI UART/USART	24-UFBGA DSBGA	MSP430 CPU16	17	FRAM	Surface Mount	16 MHz	8	10	1.8 V	3.6 V	16-Bit	85 °C	-40 °C	Internal	15.5 KB
Texas Instruments MSP430FR2433IRGET	4K x 8	24-VQFN (4x4)	I2C IrDA SCI SPI UART/USART	24-VFQFN Exposed Pad	MSP430 CPU16	19	FRAM	Surface Mount	16 MHz	8	10	1.8 V	3.6 V	16-Bit	85 °C	-40 °C	Internal	15.5 KB
Texas Instruments MSP430FR2433IYQWR	4K x 8	24-DSBGA	I2C IrDA SCI SPI UART/USART	24-UFBGA DSBGA	MSP430 CPU16	17	FRAM	Surface Mount	16 MHz	8	10	1.8 V	3.6 V	16-Bit	85 °C	-40 °C	Internal	15.5 KB

Catalog

16 MHz MCU with 16KB FRAM, 4KB SRAM, 10-bit ADC, UART/SPI/I2C, timer

Key Features

• Embedded microcontroller16-bit RISC architectureClock supports frequencies up to 16 MHzWide supply voltage range from 3.6 V down to 1.8 V (minimum supply voltage is restricted by SVS levels, see the SVS specifications)Optimized ultra-low-power modesActive mode: 126 µA/MHz (typical)Standby: <1 µA with VLOLPM3.5 real-time clock (RTC) counter with 32768-Hz crystal: 730 nA (typical)Shutdown (LPM4.5): 16 nA (typical)High-performance analog8-channel 10-bit analog-to-digital converter (ADC)Internal 1.5-V referenceSample-and-hold 200 kspsEnhanced serial communicationsTwo enhanced universal serial communication interfaces (eUSCI_A) support UART, IrDA, and SPIOne eUSCI (eUSCI_B) supports SPI and I2CIntelligent digital peripheralsFour 16-bit timersTwo timers with three capture/compare registers each (Timer_A3)Two timers with two capture/compare registers each (Timer_A2)One 16-bit counter-only RTC16-bit cyclic redundancy check (CRC)Low-power ferroelectric RAM (FRAM)Up to 15.5KB of nonvolatile memoryBuilt-in error correction code (ECC)Configurable write protectionUnified memory of program, constants, and storage1015write cycle enduranceRadiation resistant and nonmagneticHigh FRAM-to-SRAM ratio, up to 4:1Clock system (CS)On-chip 32-kHz RC oscillator (REFO)On-chip 16-MHz digitally controlled oscillator (DCO) with frequency-locked loop (FLL)±1% accuracy with on-chip reference at room temperatureOn-chip very low-frequency 10-kHz oscillator (VLO)On-chip high-frequency modulation oscillator (MODOSC)External 32-kHz crystal oscillator (LFXT)Programmable MCLK prescalar of 1 to 128SMCLK derived from MCLK with programmable prescalar of 1, 2, 4, or 8General input/output and pin functionalityTotal of 19 I/Os on VQFN-24 package16 interrupt pins (P1 and P2) can wake MCU from low-power modesDevelopment tools and softwareDevelopment toolsLaunchPad™ development kit (MSP‑EXP430FR2433)Target development board (MSP‑TS430RGE24A)Family member (also see Device Comparison)MSP430FR2433: 15KB of program FRAM, 512B of information FRAM, 4KB of RAMPackage options24 pin: VQFN (RGE)24-pin: DSBGA (YQW)Embedded microcontroller16-bit RISC architectureClock supports frequencies up to 16 MHzWide supply voltage range from 3.6 V down to 1.8 V (minimum supply voltage is restricted by SVS levels, see the SVS specifications)Optimized ultra-low-power modesActive mode: 126 µA/MHz (typical)Standby: <1 µA with VLOLPM3.5 real-time clock (RTC) counter with 32768-Hz crystal: 730 nA (typical)Shutdown (LPM4.5): 16 nA (typical)High-performance analog8-channel 10-bit analog-to-digital converter (ADC)Internal 1.5-V referenceSample-and-hold 200 kspsEnhanced serial communicationsTwo enhanced universal serial communication interfaces (eUSCI_A) support UART, IrDA, and SPIOne eUSCI (eUSCI_B) supports SPI and I2CIntelligent digital peripheralsFour 16-bit timersTwo timers with three capture/compare registers each (Timer_A3)Two timers with two capture/compare registers each (Timer_A2)One 16-bit counter-only RTC16-bit cyclic redundancy check (CRC)Low-power ferroelectric RAM (FRAM)Up to 15.5KB of nonvolatile memoryBuilt-in error correction code (ECC)Configurable write protectionUnified memory of program, constants, and storage1015write cycle enduranceRadiation resistant and nonmagneticHigh FRAM-to-SRAM ratio, up to 4:1Clock system (CS)On-chip 32-kHz RC oscillator (REFO)On-chip 16-MHz digitally controlled oscillator (DCO) with frequency-locked loop (FLL)±1% accuracy with on-chip reference at room temperatureOn-chip very low-frequency 10-kHz oscillator (VLO)On-chip high-frequency modulation oscillator (MODOSC)External 32-kHz crystal oscillator (LFXT)Programmable MCLK prescalar of 1 to 128SMCLK derived from MCLK with programmable prescalar of 1, 2, 4, or 8General input/output and pin functionalityTotal of 19 I/Os on VQFN-24 package16 interrupt pins (P1 and P2) can wake MCU from low-power modesDevelopment tools and softwareDevelopment toolsLaunchPad™ development kit (MSP‑EXP430FR2433)Target development board (MSP‑TS430RGE24A)Family member (also see Device Comparison)MSP430FR2433: 15KB of program FRAM, 512B of information FRAM, 4KB of RAMPackage options24 pin: VQFN (RGE)24-pin: DSBGA (YQW)

Description

The MSP430FR2433 microcontroller (MCU) is part of the MSP430™ Value Line sensing portfolio, TI’s lowest-cost family of MCUs for sensing and measurement applications. The architecture, FRAM, and integrated peripherals, combined with extensive low-power modes, are optimized to achieve extended battery life in portable and battery-powered sensing applications in a small VQFN package (4 mm × 4 mm). TI’s MSP430 ultra-low-power FRAM microcontroller platform combines uniquely embedded FRAM and a holistic ultra-low-power system architecture, allowing system designers to increase performance while lowering energy consumption. FRAM technology combines the low-energy fast writes, flexibility, and endurance of RAM with the nonvolatility of flash. The MSP430FR2433 MCU is supported by an extensive hardware and software ecosystem with reference designs and code examples to get your design started quickly. Development kits include theMSP‑EXP430FR2433LaunchPad™ development kit and theMSP‑TS430RGE24A24-pin target development board. TI also provides freeMSP430Ware™ software, which is available as a component ofCode Composer Studio™ IDEdesktop and cloud versions withinTI Resource Explorer. The MSP430 MCUs are also supported by extensive online collateral, training, and online support through theE2E™ support forums. For complete module descriptions, see theMSP430FR4xx and MSP430FR2xx Family User’s Guide. The MSP430FR2433 microcontroller (MCU) is part of the MSP430™ Value Line sensing portfolio, TI’s lowest-cost family of MCUs for sensing and measurement applications. The architecture, FRAM, and integrated peripherals, combined with extensive low-power modes, are optimized to achieve extended battery life in portable and battery-powered sensing applications in a small VQFN package (4 mm × 4 mm). TI’s MSP430 ultra-low-power FRAM microcontroller platform combines uniquely embedded FRAM and a holistic ultra-low-power system architecture, allowing system designers to increase performance while lowering energy consumption. FRAM technology combines the low-energy fast writes, flexibility, and endurance of RAM with the nonvolatility of flash. The MSP430FR2433 MCU is supported by an extensive hardware and software ecosystem with reference designs and code examples to get your design started quickly. Development kits include theMSP‑EXP430FR2433LaunchPad™ development kit and theMSP‑TS430RGE24A24-pin target development board. TI also provides freeMSP430Ware™ software, which is available as a component ofCode Composer Studio™ IDEdesktop and cloud versions withinTI Resource Explorer. The MSP430 MCUs are also supported by extensive online collateral, training, and online support through theE2E™ support forums. For complete module descriptions, see theMSP430FR4xx and MSP430FR2xx Family User’s Guide.
