32051 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

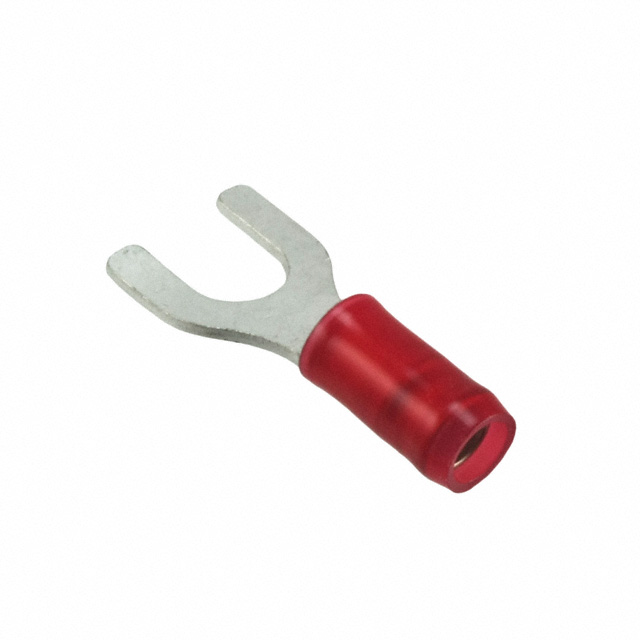

CONN SPADE TERM 16-22AWG #10 RED
| Part | Tongue Inside Opening [x] | Tongue Inside Opening [x] | Wire Gauge [Max] | Wire Gauge [Min] | Color | Mounting Type | Features | Terminal Type | Insulation | Stud/Tab Size | Contact Material | Width - Outer Edges [x] | Width - Outer Edges [x] | Contact Finish | Material - Insulation | Length - Overall [x] | Length - Overall | Length - Termination | Length - Termination | Termination | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Length - Ring Center to Termination | Length - Ring Center to Termination [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 5 mm | 0.197 in | 22 AWG | 16 AWG | Red | Free Hanging (In-Line) | Serrated Termination | Standard | Insulated | 10 Stud | Copper | 0.375 in | 9.53 mm | Tin | Nylon Polyamide (PA) | 0.908 " | 23.06 mm | 0.404 " | 10.26 mm | Crimp | 2.03 mm | 3.18 mm | 0.125 " | 0.08 in | 7.92 mm | 0.312 in |
