155-30 Series

Catalog

CONN. CLIP W/FIR TREE, 0.7 - 5.1 MM PANEL THICK., 6.4 - 7.1 MM HOLE DIA., PA66HIRHS, BLACK, 500/PKG

Part	Bundle Center to Mounting Center [x]	Bundle Center to Mounting Center [x]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Features	Material	Height [z]	Height [z]	Width [x]	Width [x]	Mounting Type	Panel Hole Size [Min]	Panel Hole Size [Min]	Panel Hole Size [Max]	Panel Hole Size [Max]	Material Flammability Rating	Length	Length	Type Attributes	Type	Color	Width	Width	Material Thickness [x]	Material Thickness [x]	Length [x]	Panel Hole Size [Max]

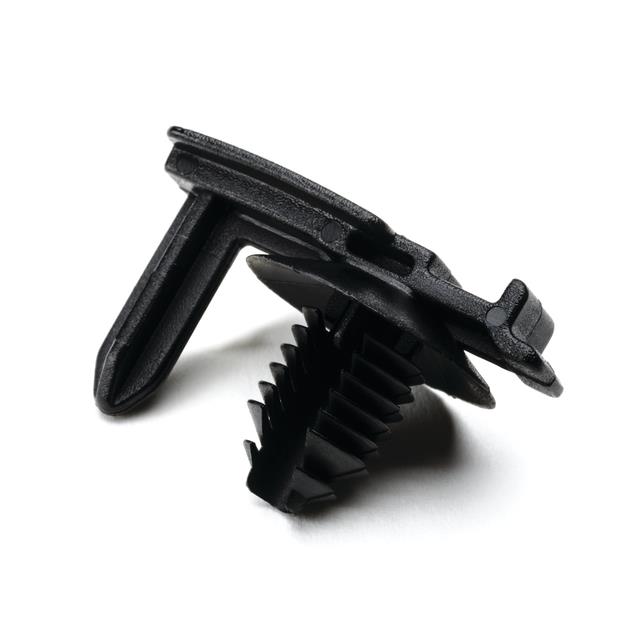

HELLERMANNTYTON 155-30702	12.5 mm	0.492 in	5.1 mm	0.7 mm	0.028 in	0.201 "	Heat Stabilized Impact Resistant UV Resistant	Polyamide (PA66) Nylon 6/6	0.22 in	5.59 mm	10 mm	0.394 "	Cupped Fir Tree	0.252 "	6.4 mm	7.1 mm	0.28 in	UL94 HB	1.063 in	27 mm	Turnstop	Clip Connector	Black

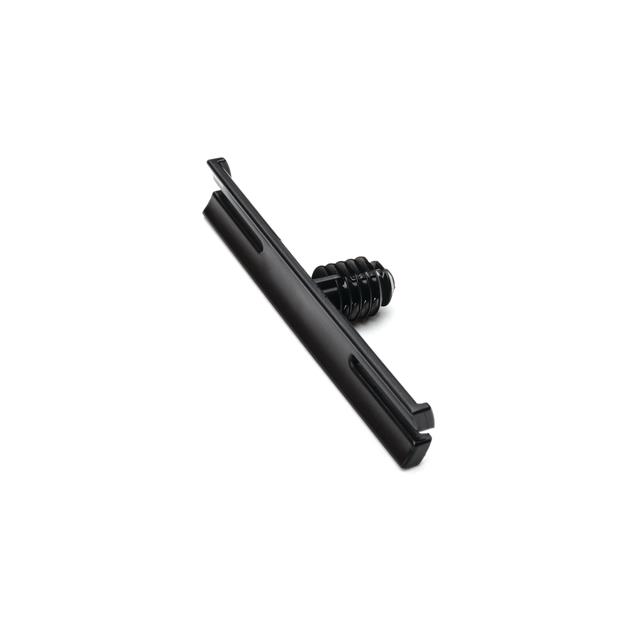

HELLERMANNTYTON 155-30802			5.1 mm	0.6 mm	0.024 in	0.201 "	Heat Stabilized Impact Resistant UV Resistant	Polyamide (PA66) Nylon 6/6					Fir Tree	0.248 in	6.3 mm		0.276 in	UL94 HB		55 mm		Clip Bundling	Black	9 mm	0.354 in	0.059 in	1.5 mm	2.165 in	7 mm
