KM00.1105 Series

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Connector Style	Connector Type	Approval Agency	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Ingress Protection	Accomodates a Fuse	Features	Switch Features	Material Flammability Rating	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Termination	Termination	Termination	Filter Type	Current Rating - Appliance Inlet	Voltage Rating - Appliance Inlet	Fuse Holder, Drawer	Number of Positions	Mounting Type
SCHURTER Inc. KM00.1105.1101	IEC 320-C14 IEC 320-C18	Receptacle Male Blades - Module	CCC cULus ENEC	28 mm	47 mm	IP40		Terminating Cover	Switch On-Off	UL94 V-0	2.5 mm	0.039 in	0.098 in	1 mm	0.189 "	4.8 mm	Quick Connect	Unfiltered - Commercial	10 A	250 VAC	Drawer Sold Separate	2	Panel Mount Snap-In

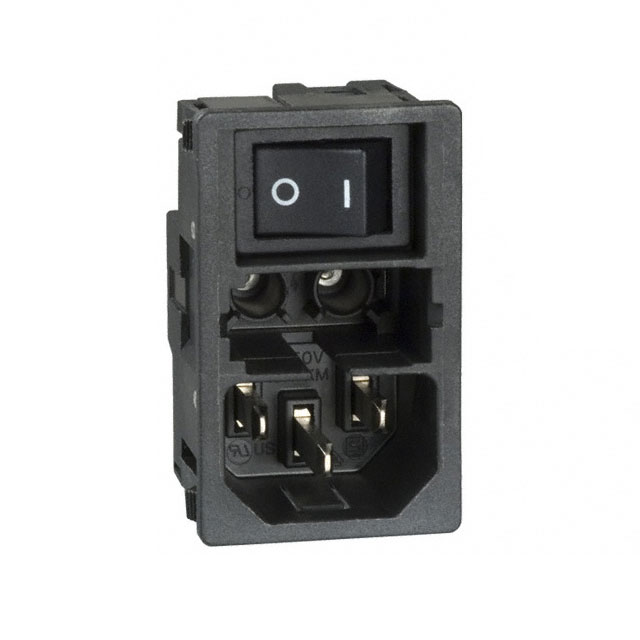

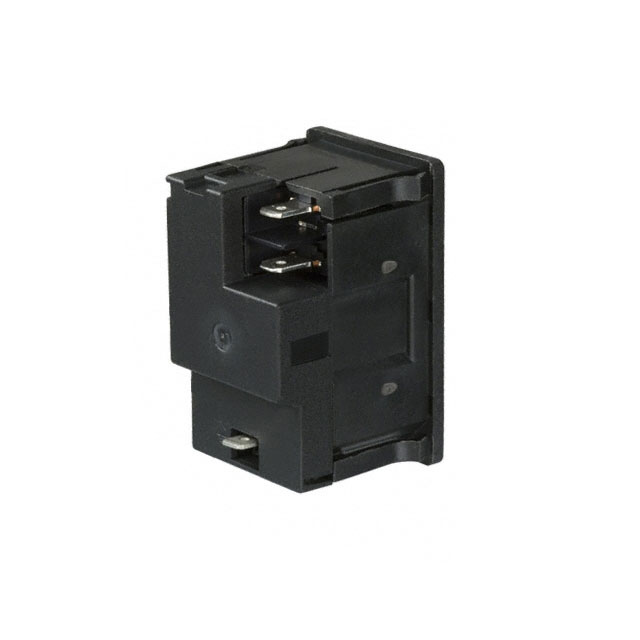

SCHURTER Inc. KM00.1105.11	IEC 320-C14 IEC 320-C18	Receptacle Male Blades - Module	CCC cULus ENEC	28 mm	47 mm	IP40		Terminating Cover	Switch On-Off	UL94 V-0	2.5 mm	0.039 in	0.098 in	1 mm	0.189 "	4.8 mm	Quick Connect	Unfiltered - Commercial	10 A	250 VAC	Drawer Sold Separate	2	Panel Mount Snap-In
