AQ12CANA-02HTG Series

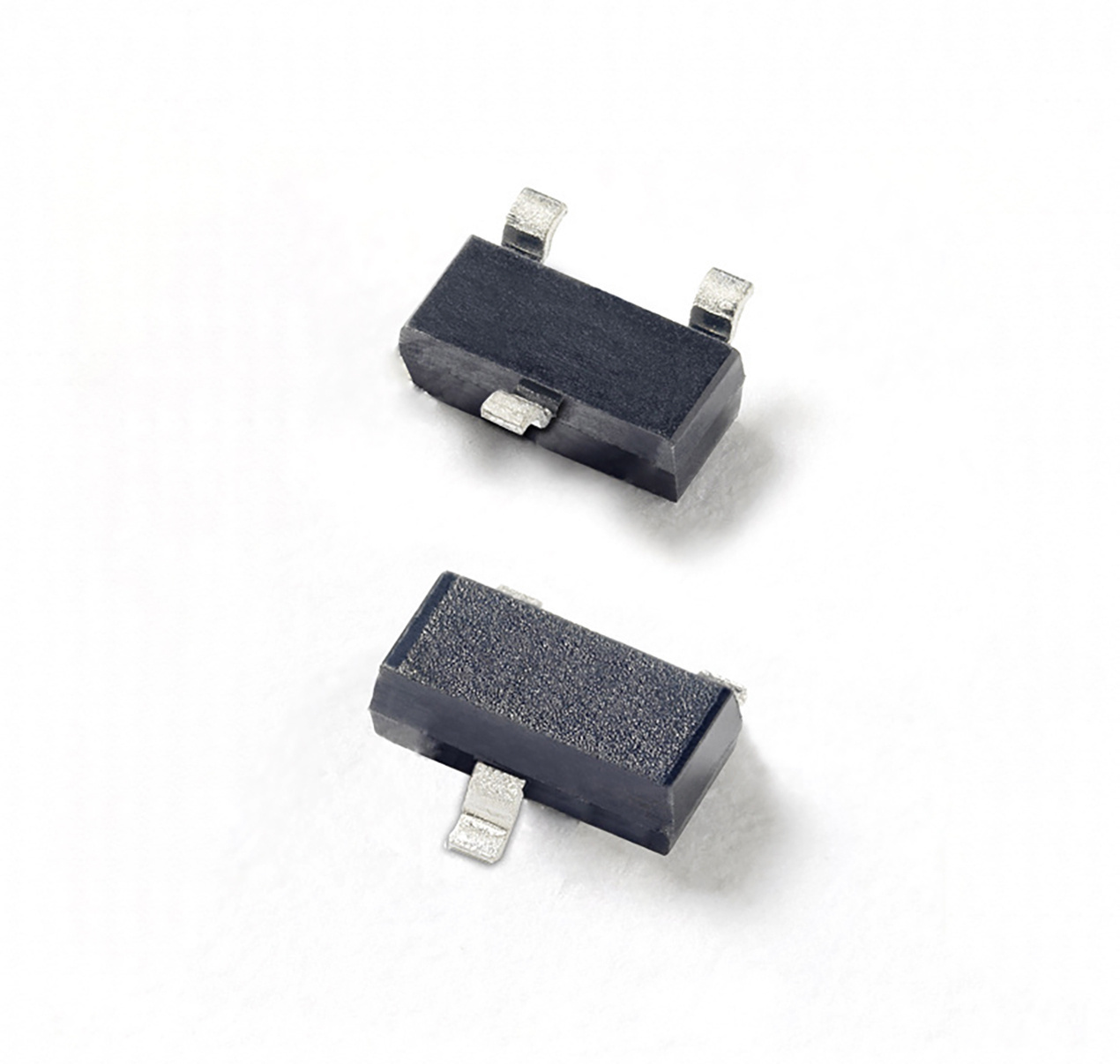

12V 12A 30kV SOT23-3L Diode Array

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

12V 12A 30kV SOT23-3L Diode Array

Part	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Type	Qualification	Voltage - Clamping (Max) @ Ipp [Max]	Power - Peak Pulse	Package / Case	Mounting Type	Supplier Device Package	Current - Peak Pulse (10/1000µs)	Grade	Voltage - Reverse Standoff (Typ)	Unidirectional Channels [custom]	Capacitance @ Frequency	Voltage - Clamping (Max) @ Ipp	Bidirectional Channels [custom]	Voltage - Breakdown (Min) [Min]	Bidirectional Channels
Littelfuse/Commercial Vehicle Products AQ12-01FTG	CAN	-40 °C	150 °C	Zener	AEC-Q101	22.5 V	450 W	SC-76 SOD-323	Surface Mount	SOD-323	17 A	Automotive	12 V	1	150 pF
Littelfuse/Commercial Vehicle Products AQ12C-01FTG	CAN	-40 °C	150 °C	Zener	AEC-Q101		450 W	SC-76 SOD-323	Surface Mount	SOD-323	17 A	Automotive	12 V		100 pF	23 V	1
Littelfuse/Commercial Vehicle Products AQ12CANA-02HTG		-40 °C	150 °C	Zener	AEC-Q101			SC-59 SOT-23-3 TO-236-3	Surface Mount	SOT-23-3	12 A	Automotive	12 V		28 pF	26.5 V		13 V	2

Catalog

12V 12A 30kV SOT23-3L Diode Array

Key Features

• IEC 61000-4-2 ESD protection: ±30kV by contact and ±30 kV through air

• IEC 61000-4-4 EFT protection: 40 A (5/50 ns)

• Lightning, 30A (8/20 as defined in IEC 61000-4-5 2nd edition) for the AQ05C

• Low clamping voltage

• PPAP capable

• Low leakage current

• Small SOD323 package fits 0805 footprints

• AEC-Q101 qualified

• Lead-free, halogen-free, and RoHS compliant

• Moisture Sensitivity Level (MSL -1)

Description

The bidirectional AQxxC-01FTG series is designed to replace multilayer varistors (MLVs) in electronic equipment for low speed and DC applications. It will protect any sensitive equipment from damage due to electrostatic discharge (ESD) and other transient events. The AQxxC-01FTG series can safely absorb repetitive ESD strikes of ±30 kV (contact and air discharge as defined in IEC 61000-4-2) without any performance degradation. Additionally, the AQ05C can safely conduct a 30A 8/20 surge event as defined in IEC 61000-4-5 2nd Edition.
