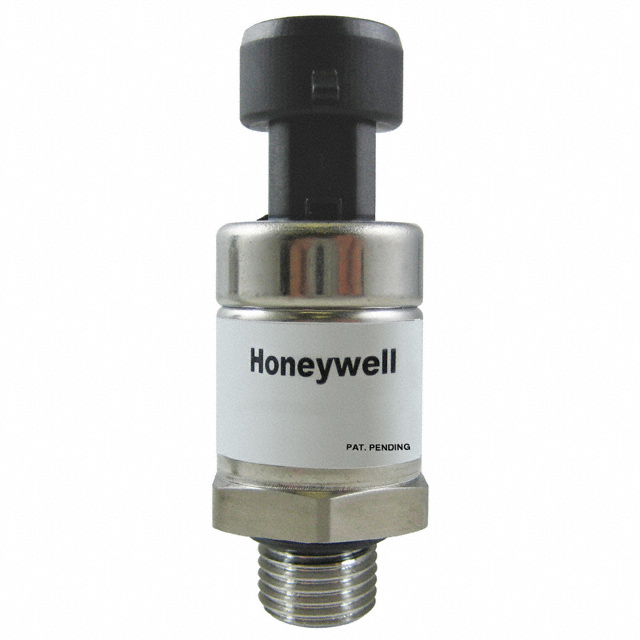

PX2AG1 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

HEAVY DUTY PRESSURE TRANSDUCER

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Accuracy	Package / Case	Output Type	Port Size	Port Size	Operating Pressure	Operating Pressure	Maximum Pressure [Max]	Maximum Pressure [Max]	Termination Style	Port Style	Output [Min]	Output [Max]	Pressure Type	Features	Applications	Maximum Pressure	Maximum Pressure
Honeywell Sensing and Productivity Solutions PX2AG1XX100PSAAX	4.75 V	5.25 V	125 °C	-40 °C	0.25 %	Cylinder	Analog Voltage	BSPP Male	6.35 mm	689.48 kPa	100 PSI	450 PSI	3102.64 kPa	Connector	Threaded	0.5 V	4.5 V	Sealed Gauge	Temperature Compensated	Industrial Automation
Honeywell Sensing and Productivity Solutions PX2AG1XX01KPABGX	8 V	30 VDC	125 °C	-40 °C	0.25 %	Cylinder	Analog Voltage	BSPP Male	6.35 mm	6894.76 kPa	1000 PSI	2000 PSI	13789.51 kPa	Connector	Threaded	1 V	5 V		Temperature Compensated	Industrial Automation
Honeywell Sensing and Productivity Solutions PX2AG1XX040BSCHX	8 V	30 VDC	125 °C	-40 °C	0.25 %	Cylinder	Analog Current	BSPP Male	6.35 mm	4000 kPa	580.15 PSI			Connector	Threaded	4 mA	20 mA	Sealed Gauge	Temperature Compensated	Industrial Automation	6900 kPa	1000.76 PSI
Honeywell Sensing and Productivity Solutions PX2AG1XX100PGAAX
Honeywell Sensing and Productivity Solutions PX2AG1XX025BSCHX	8 V	30 VDC	125 °C	-40 °C	0.25 %	Cylinder	Analog Current	BSPP Male	6.35 mm	25 bar	362.59 PSI			Connector	Threaded	4 mA	20 mA	Sealed Gauge	Temperature Compensated	Industrial Automation	6900 kPa	1000.76 PSI
Honeywell Sensing and Productivity Solutions PX2AG1XX010BSAAX	4.75 V	5.25 V	125 °C	-40 °C	0.25 %	Cylinder	Analog Voltage	BSPP Male	6.35 mm	10 bar	145.04 PSI	449.62 PSI	3100 kPa	Connector	Threaded	0.5 V	4.5 V	Sealed Gauge	Temperature Compensated	Industrial Automation
Honeywell Sensing and Productivity Solutions PX2AG1XX004BACHX
Honeywell Sensing and Productivity Solutions PX2AG1XX016BSABX	4.5 V	5.5 V	125 °C	-40 °C	0.25 %	Cylinder	Analog Voltage	BSPP Male	6.35 mm	1600 kPa	232.06 PSI	754.2 PSI	5200 kPa	Connector	Threaded	0.25 V	4.75 V	Sealed Gauge	Temperature Compensated	Industrial Automation
Honeywell Sensing and Productivity Solutions PX2AG1XX002BACHX	8 V	30 VDC	125 °C	-40 °C	0.25 %	Cylinder	Analog Current	BSPP Male	6.35 mm	4598.8 kPa	667 PSI	1000 PSI	6894.76 kPa	Connector	Threaded	4 mA	20 mA		Temperature Compensated	Industrial Automation
Honeywell Sensing and Productivity Solutions PX2AG1XX010BACHX
