AR0522 Series

CMOS Image Sensor, 5.1 MP, 1/2.5", Near Infra-Red Enhancement

Catalog

CMOS Image Sensor, 5.1 MP, 1/2.5", Near Infra-Red Enhancement

Part	Sensor Type	Utilized IC / Part	Supplied Contents	Supplier Device Package	Pixel Size [y]	Pixel Size [x]	Frames per Second	Type	Package / Case	Active Pixel Array [custom]	Active Pixel Array [custom]

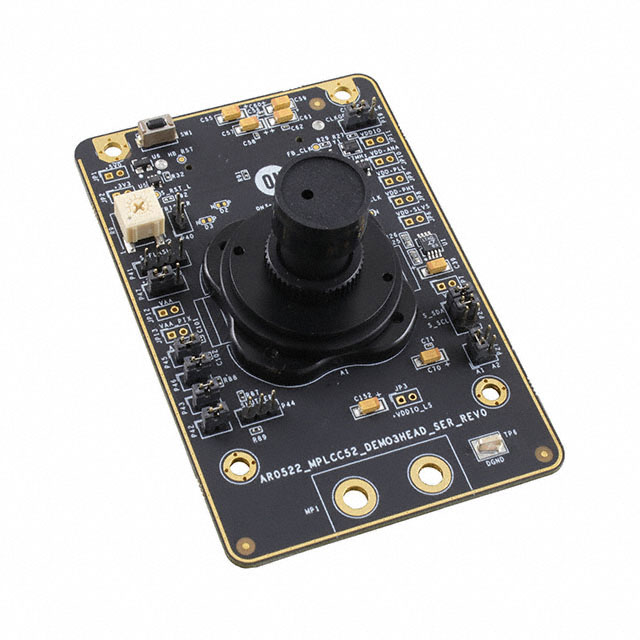

ON Semiconductor AR0522SRSC09SURAH3-GEVB	Image Sensor	AR0522SR	Board(s)

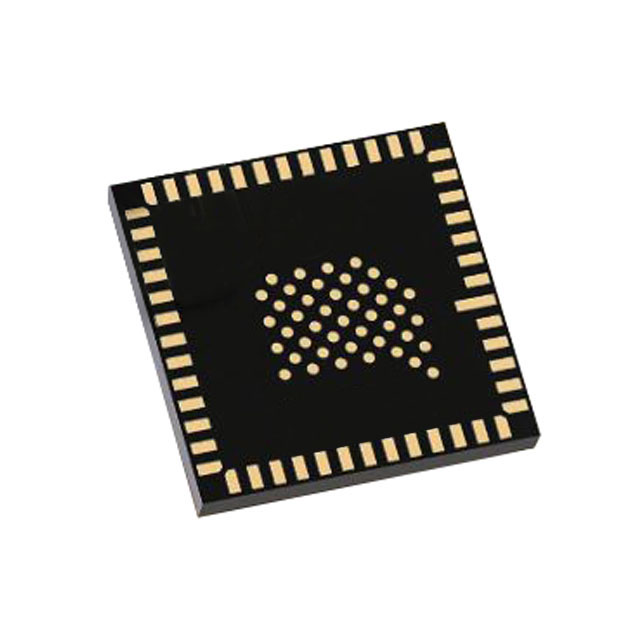

ON Semiconductor AR0522SRSC09SURA0-DR				52-PLCC (12x12)	2.2 µm	2.2 µm	60	CMOS	52-LCC	2592	1944
ON Semiconductor AR0522SRSC09SURA0-DR1				52-PLCC (12x12)	2.2 µm	2.2 µm	60	CMOS	52-LCC	2592	1944
ON Semiconductor AR0522SRSM09SURA0-DR				52-PLCC (12x12)	2.2 µm	2.2 µm	60	CMOS	52-LCC	2592	1944
ON Semiconductor AR0522SRSM09SURA0-DP				52-PLCC (12x12)	2.2 µm	2.2 µm	60	CMOS	52-LCC	2592	1944
ON Semiconductor AR0522SRSC09SURA0-DP1				52-PLCC (12x12)	2.2 µm	2.2 µm	60	CMOS	52-LCC	2592	1944

Catalog

CMOS Image Sensor, 5.1 MP, 1/2.5", Near Infra-Red Enhancement

Key Features

• 5 Mp at 60 fps for Excellent Video Performance

• Small Optical Format (1/2.5−inch)

• Color Filter Array : RGB and Monochrome

• 1440p Mode for 16:9 Video

• Superior Low−light Performance

• 2.2 m Back Side Illuminated Pixel Technology

• Supports Line Interleaved T1/T2 Readout to Enable HDR Processing in ISP Chip

• Support for External Mechanical Shutter

• On−chip Phase−locked Loop (PLL) Oscillator

• Integrated Color and Lens Shading Correction

• Slave Mode for Precise Frame−rate Control

• Data Interfaces: ♦ HiSPi (SLVS) − 4 Lanes ♦ MIPI CSI−2 − 4 Lanes

• Auto Black Level Calibration

• High−speed Configurable Context Switching

• Temperature Sensor

• Near Infra-Red Enhancement

• Fast Mode Plus Compatible 2 Wire Interface

Description

The AR0522 is a 1/2.5−inch CMOS digital image sensor with an active−pixel array of 2592 (H) x 1944 (V). It captures images in either linear or high dynamic range modes with a rolling−shutter readout, and includes sophisticated camera functions such as binning, windowing and both video and single frame modes. It is designed for both low light and high dynamic range performance, with line interleaved T1/T2 read out to support off chip HDR in an ISP chip. The AR0522 produces extraordinarily clear, sharp digital pictures, and its ability to capture both continuous video and single frames makes it the perfect choice for wide range of applications.
