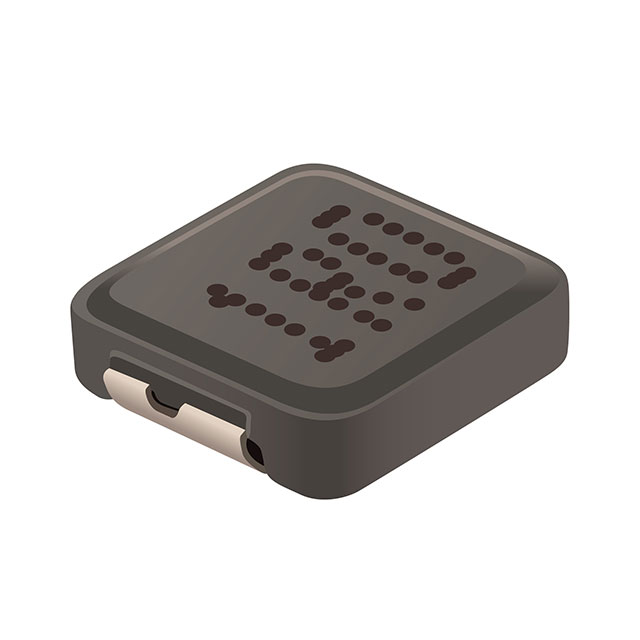

SRP5015TA Series
Manufacturer: Bourns Inc.
Beta
⌘K
INDUCTOR, 0.33UH, 9A, 20%, SHIELDED
| Part | Inductance Frequency - Test | Current - Saturation (Isat) | Tolerance | Height - Seated (Max) [Max] | Height - Seated (Max) | Type | Inductance | Frequency - Self Resonant | DC Resistance (DCR) [Max] | Q @ Freq | Current Rating (Amps) | Package / Case | Shielding | Operating Temperature [Min] | Operating Temperature [Max] | Material - Core | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Mounting Type | Ratings | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 100 kHz | 16 A | 20 % | 0.059 " | 1.5 mm | Drum Core Wirewound | 330 nH | 120 MHz | 9.8 mOhm | 5 100 kHz | 9 A | Nonstandard | Shielded | -55 C | 150 °C | Carbonyl Powder | 5.7 mm | 0.205 " | 0.224 " | 5.2 mm | Surface Mount | AEC-Q200 | |
Bourns Inc. | 100 kHz | 22.5 A | 30 % | 0.059 " | 1.5 mm | Drum Core Wirewound | 180 MHz | 5 100 kHz | 15 A | Nonstandard | Shielded | -55 C | 150 °C | Carbonyl Powder | 5.7 mm | 0.205 " | 0.224 " | 5.2 mm | Surface Mount | AEC-Q200 | 4.2 mOhm | ||
 Bourns Inc. | 100 kHz | 20 A | 30 % | 0.059 " | 1.5 mm | Drum Core Wirewound | 220 nH | 165 MHz | 5 100 kHz | 12 Amps | Nonstandard | Shielded | -55 C | 150 °C | Carbonyl Powder | 5.7 mm | 0.205 " | 0.224 " | 5.2 mm | Surface Mount | AEC-Q200 | 6.5 mOhm | |
Bourns Inc. | 100 kHz | 3 A | 20 % | 0.059 " | 1.5 mm | Drum Core Wirewound | 6.8 µH | 24 MHz | 171 mOhm | 10 100 kHz | 2.3 A | Nonstandard | Shielded | -55 C | 150 °C | Carbonyl Powder | 5.7 mm | 0.205 " | 0.224 " | 5.2 mm | Surface Mount | AEC-Q200 | |
 Bourns Inc. | 100 kHz | 4 A | 20 % | 0.059 " | 1.5 mm | Drum Core Wirewound | 4.7 ÁH | 29 MHz | 10 100 kHz | 2.7 A | Nonstandard | Shielded | -55 C | 150 °C | Carbonyl Powder | 5.7 mm | 0.205 " | 0.224 " | 5.2 mm | Surface Mount | AEC-Q200 | 118 mOhm | |
Bourns Inc. | 100 kHz | 7 A | 20 % | 0.059 " | 1.5 mm | Drum Core Wirewound | 1.5 µH | 57 MHz | 45 mOhm | 10 100 kHz | 4.5 A | Nonstandard | Shielded | -55 C | 150 °C | Carbonyl Powder | 5.7 mm | 0.205 " | 0.224 " | 5.2 mm | Surface Mount | AEC-Q200 | |
Bourns Inc. | 100 kHz | 30 % | 0.059 " | 1.5 mm | Drum Core Wirewound | 150 nH | 220 MHz | 4.1 mOhm | 5 100 kHz | 16 A | Nonstandard | Shielded | -55 C | 150 °C | Carbonyl Powder | 5.7 mm | 0.205 " | 0.224 " | 5.2 mm | Surface Mount | AEC-Q200 | ||
Bourns Inc. | 100 kHz | 15 A | 20 % | 0.059 " | 1.5 mm | Drum Core Wirewound | 470 nH | 110 MHz | 5 100 kHz | 8 A | Nonstandard | Shielded | -55 C | 150 °C | Carbonyl Powder | 5.7 mm | 0.205 " | 0.224 " | 5.2 mm | Surface Mount | AEC-Q200 | 13.8 mOhm | |
Bourns Inc. | 100 kHz | 9 A | 20 % | 0.059 " | 1.5 mm | Drum Core Wirewound | 1 µH | 75 MHz | 25.3 mOhm | 10 100 kHz | 6 A | Nonstandard | Shielded | -55 C | 150 °C | Carbonyl Powder | 5.7 mm | 0.205 " | 0.224 " | 5.2 mm | Surface Mount | AEC-Q200 |
