PR2C10 Series
Manufacturer: Hasco Relays
Beta
⌘K
RELAY DPDT 10A 12V
| Part | Termination Style | Must Release Voltage | Contact Material | Contact Rating (Current) | Contact Form | Operate Time | Release Time | Must Operate Voltage | Coil Type | Coil Current | Coil Insulation | Coil Voltage | Seal Rating | Operating Temperature [Max] | Operating Temperature [Min] | Switching Voltage | Mounting Type | Switching Voltage [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

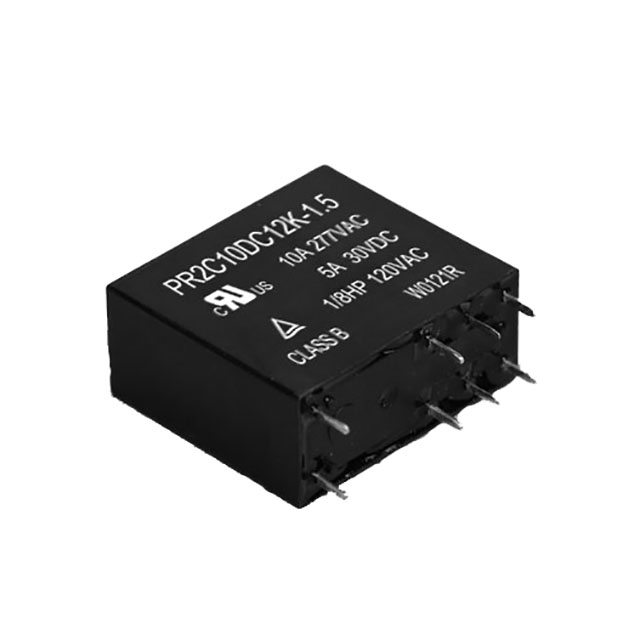

 Hasco Relays | PC Pin | 1.2 VDC | Silver Alloy | 10 A | DPDT (2 Form C) | 15 ms | 5 ms | 9.6 VDC | Non Latching | 44 mA | Class B | 12 VDC | Sealed - Fully | 85 °C | -40 C | 277 VAC | Through Hole | |
 Hasco Relays | PC Pin | 1.2 VDC | Silver Alloy | 10 A | DPDT (2 Form C) | 15 ms | 5 ms | 9.6 VDC | Non Latching | 44 mA | Class B | 12 VDC | 85 °C | -40 C | Through Hole | 277 VAC |
