QBLP655 Series

Catalog

LED BLUE CLR 1205 SMD BOTTOM ENT

Part	Configuration	Current - Test	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Lens Color	Package / Case	Viewing Angle	Color	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Lens Size	Mounting Type	Height (Max) [Max] [z]	Lens Transparency	Wavelength - Dominant	Lens Style	Current - Test	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]
QT Brightek (QTB) QBLP655R-IB	Standard	20 mA	1.2 mm	3.2 mm	1205	Colorless	2-SMD No Lead	140 °	Blue	60 mcd	3.1 V	1.2 mm	Surface Mount Bottom Entry	1.2 mm	Clear	470 nm	Square with Flat Top

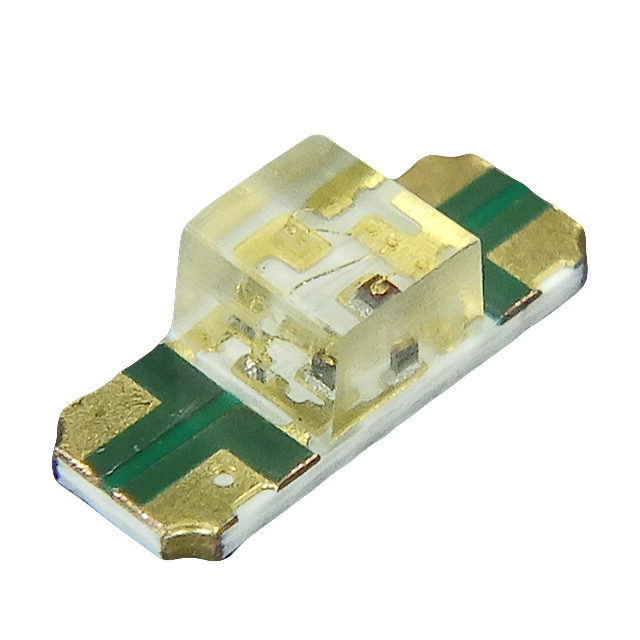

QT Brightek (QTB) QBLP655R-RGB	Common Anode		1.2 mm	3.2 mm	1205	Colorless	4-SMD No Lead	140 °	Blue Green Red		2 V 3.1 V 3.1 V	1.2 mm	Surface Mount Bottom Entry	1.2 mm	Clear	470 nm 520 nm 623 nm	Square with Flat Top	20mA Blue 20mA Green 20mA Red	90 mcd	450 mcd	95 mcd
