EPS.00.250 Series

Manufacturer: LEMO

Catalog

CONN NIMCAMAC RCPT R/A 50OHM PCB

Part	Includes	Center Contact Plating	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Body Finish	Dielectric Material	Voltage Rating	Housing Color	Fastening Type	Mounting Feature	Connector Style	Number of Ports	Impedance	Ingress Protection	Center Contact Material	Connector Type	Shield Termination	Contact Termination	Mounting Type

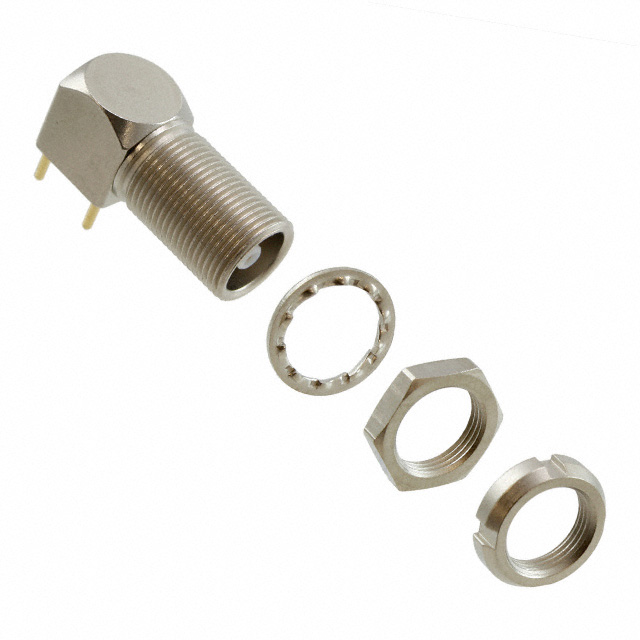

LEMO EPS.00.250.NTN	1 Connector 1 Lockwasher 2 Nuts	Gold	5000	-55 C	260 °C	Brass	Nickel	Polytetrafluoroethylene (PTFE)	700 VDC	Silver	Push-Pull	Bulkhead - Front Side Nut	NIM-CAMAC CD/N 549	1	50 Ohms	IP50 - Dust Protected	Bronze	Receptacle Female Socket	Solder	Solder	Panel Mount Right Angle Through Hole
LEMO EPS.00.250.NTDY	1 Connector 1 Lockwasher 2 Nuts	Gold	5000	-55 C	260 °C	Brass	Nickel	Polytetrafluoroethylene (PTFE)	700 VDC	Silver	Push-Pull	Bulkhead - Front Side Nut	NIM-CAMAC CD/N 549	1	50 Ohms	IP50 - Dust Protected	Bronze	Receptacle Male Pin	Solder	Solder	Panel Mount Right Angle Through Hole
LEMO EPS.00.250.NTD	1 Connector 1 Lockwasher 2 Nuts	Gold	5000	-55 C	260 °C	Brass	Nickel	Polytetrafluoroethylene (PTFE)	700 VDC	Silver	Push-Pull	Bulkhead - Front Side Nut	NIM-CAMAC CD/N 549		50 Ohms	IP50 - Dust Protected	Brass	Receptacle Male Pin	Solder	Solder	Panel Mount Right Angle Through Hole
LEMO EPS.00.250.NTN27	1 Connector 1 Lockwasher 2 Nuts	Gold	5000	-55 C	260 °C	Brass	Nickel	Polytetrafluoroethylene (PTFE)	700 VDC	Silver	Push-Pull	Bulkhead - Front Side Nut	NIM-CAMAC CD/N 549	1	50 Ohms	IP50 - Dust Protected	Bronze	Receptacle Female Socket	Solder	Solder	Panel Mount Right Angle Through Hole
