LB15WGW Series

Catalog

SWITCH PUSHBUTTON SPDT 3A 125V

Part	Mechanical Life	Electrical Life	Circuit	Actuator Type	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Type	Color - Actuator/Cap	Voltage Rating - DC	Mounting Type	Switch Function	Ingress Protection	Current Rating (Amps)	Illumination Type, Color	Termination Style	Panel Cutout Dimensions [diameter]	Illumination Voltage (Nominal)	Actuator Marking
NKK Switches LB15WGW01-5F05-JB	1000000 Cycles	100000 Cycles	SPDT	Button Round	125 V	50 °C	-25 °C	Illuminated Standard	Clear	30 V	Panel Mount Front	On-Mom	IP65 - Dust Tight Water Resistant	3 A	Green LED	Solder Quick Connect - 0.110" (2.8mm)	22 mm	5 VDC	No Marking
NKK Switches LB15WGW01-5D-JD	1000000 Cycles	100000 Cycles	SPDT	Button Round	125 V	50 °C	-25 °C	Illuminated Standard	Clear	30 V	Panel Mount Front	On-Mom	IP65 - Dust Tight Water Resistant	3 A	Amber LED	Solder Quick Connect - 0.110" (2.8mm)	22 mm	2 VDC	No Marking
NKK Switches LB15WGW01-5F-JB	1000000 Cycles	100000 Cycles	SPDT	Button Round	125 V	50 °C	-25 °C	Illuminated Standard	Clear	30 V	Panel Mount Front	On-Mom	IP65 - Dust Tight Water Resistant	3 A	Green LED	Solder Quick Connect - 0.110" (2.8mm)	22 mm	2.1 VDC	No Marking
NKK Switches LB15WGW01-5D12-JD	1000000 Cycles	100000 Cycles	SPDT	Button Round	125 V	50 °C	-25 °C	Illuminated Standard	Clear	30 V	Panel Mount Front	On-Mom	IP65 - Dust Tight Water Resistant	3 A	Amber LED	Solder Quick Connect - 0.110" (2.8mm)	22 mm	12 VDC	No Marking
NKK Switches LB15WGW01-5C-JB	1000000 Cycles	100000 Cycles	SPDT	Button Round	125 V	50 °C	-25 °C	Illuminated Standard	Clear	30 V	Panel Mount Front	On-Mom	IP65 - Dust Tight Water Resistant	3 A	LED Red	Solder Quick Connect - 0.110" (2.8mm)	22 mm	1.9 VDC	No Marking
NKK Switches LB15WGW01-6B-JB	1000000 Cycles	100000 Cycles	SPDT	Button Round	125 V	50 °C	-25 °C	Illuminated Standard	Clear	30 V	Panel Mount Front	On-Mom	IP65 - Dust Tight Water Resistant	3 A	LED White	Solder Quick Connect - 0.110" (2.8mm)	22 mm	3.3 VDC	No Marking
NKK Switches LB15WGW01-6G-JB	1000000 Cycles	100000 Cycles	SPDT	Button Round	125 V	50 °C	-25 °C	Illuminated Standard	Clear	30 V	Panel Mount Front	On-Mom	IP65 - Dust Tight Water Resistant	3 A	Blue LED	Solder Quick Connect - 0.110" (2.8mm)	22 mm	3.6 VDC	No Marking

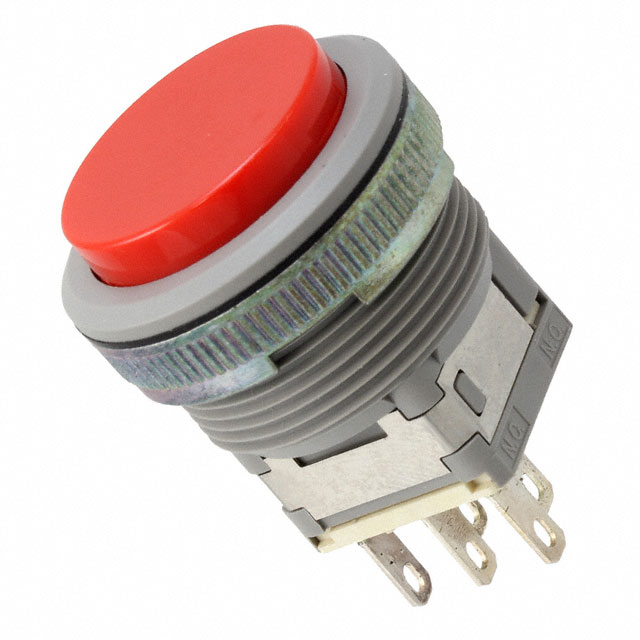

NKK Switches LB15WGW01-CJ	1000000 Cycles	100000 Cycles	SPDT	Button Round	125 V	70 °C	-25 °C	Standard	Red	30 V	Panel Mount Front	On-Mom	IP65 - Dust Tight Water Resistant	3 A		Solder Quick Connect - 0.110" (2.8mm)	22 mm		No Marking
NKK Switches LB15WGW01-5C-JC	1000000 Cycles	100000 Cycles	SPDT	Button Round	125 V	50 °C	-25 °C	Illuminated Standard	Clear	30 V	Panel Mount Front	On-Mom	IP65 - Dust Tight Water Resistant	3 A	LED Red	Solder Quick Connect - 0.110" (2.8mm)	22 mm	1.9 VDC	No Marking
