C4 Series

Manufacturer: Serpac

Catalog

BOX ABS ALMOND 2.13"L X 1.38"W

Part	Weight	Weight	Ratings	Thickness	Thickness	Material Flammability Rating	Color	Area (L x W)	Area (L x W)	Container Type	Design	Height [z]	Height [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Material	Area (L x W) [custom]	Area (L x W) [custom]

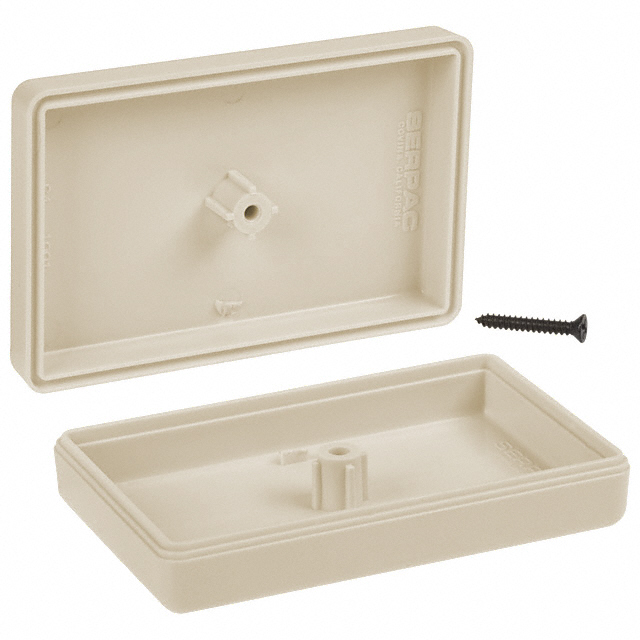

Serpac C4,AL	0.022 lb	9.98 g	IP40	2.54 mm	0.1 in	UL94 HB	Almond	19 cm²	2.94 in²	Box	Hand Held Split Sides	14.73 mm	0.58 in	54.1 mm	35.05 mm	2.13 in	1.38 in	ABS Plastic

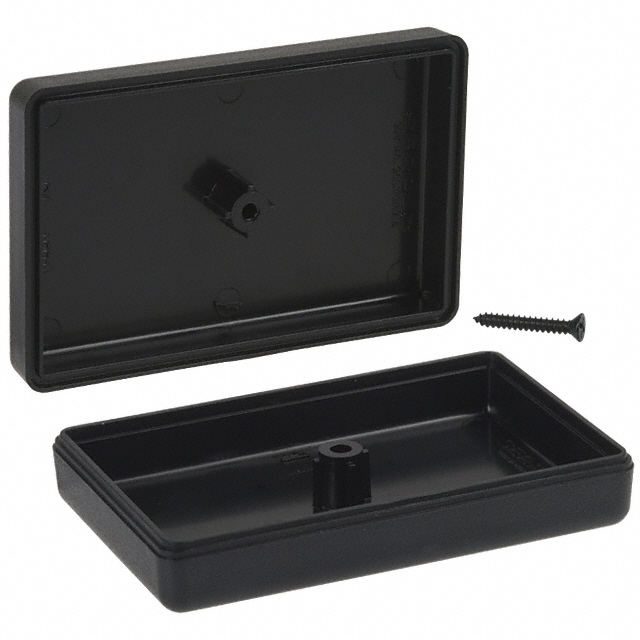

Serpac C4,BK	0.022 lb	9.98 g	IP40	2.54 mm	0.1 in	UL94 HB	Black	19 cm²	2.94 in²	Box	Hand Held Split Sides	14.73 mm	0.58 in	54.1 mm	35.05 mm	2.13 in	1.38 in	ABS Plastic

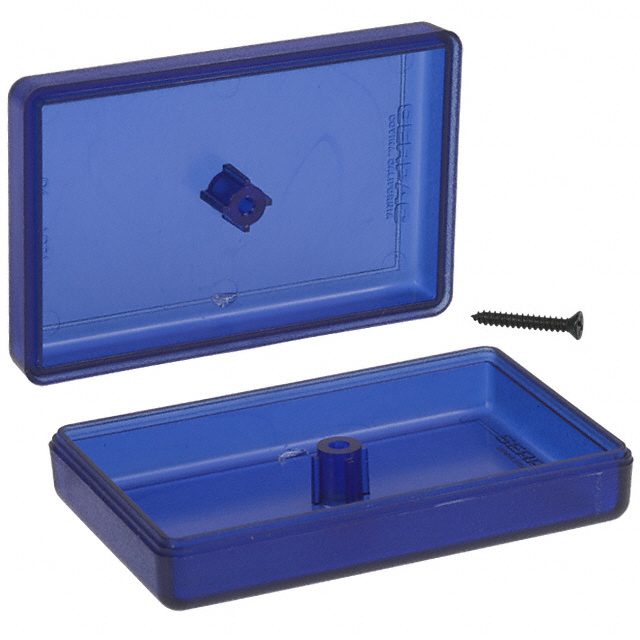

Serpac C4,TRBL	0.022 lb	9.98 g	IP40	1.52 mm	0.06 in	UL94 HB	Translucent - Blue	19 cm²	2.94 in²	Box	Hand Held Split Sides	14.73 mm	0.58 in	54.1 mm	35.05 mm	2.13 in	1.38 in	ABS Plastic

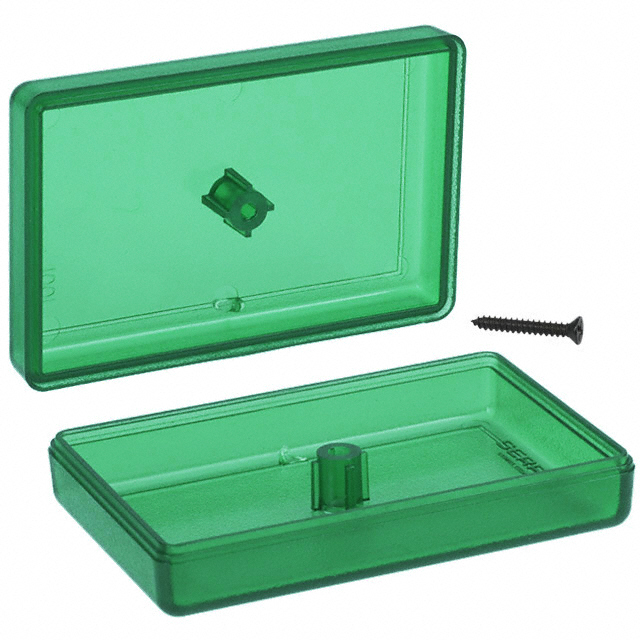

Serpac C4,TRGR	0.022 lb	9.98 g	IP40	1.52 mm	0.06 in	UL94 HB	Translucent - Green	19 cm²	2.94 in²	Box	Hand Held Split Sides	14.73 mm	0.58 in	54.1 mm	35.05 mm	2.13 in	1.38 in	ABS Plastic

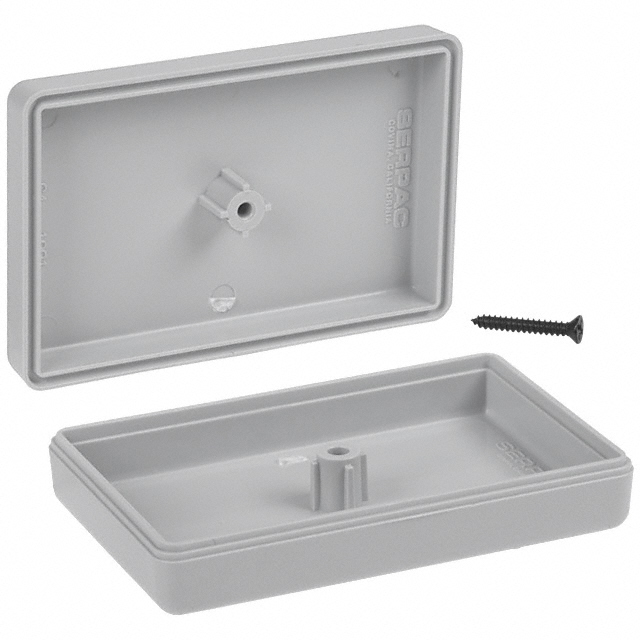

Serpac C4,GY	0.022 lb	9.98 g	IP40	2.54 mm	0.1 in	UL94 HB	Gray	19 cm²	2.94 in²	Box	Hand Held Split Sides	14.73 mm	0.58 in	54.1 mm	35.05 mm	2.13 in	1.38 in	ABS Plastic	2.94 in˛	19 cm˛

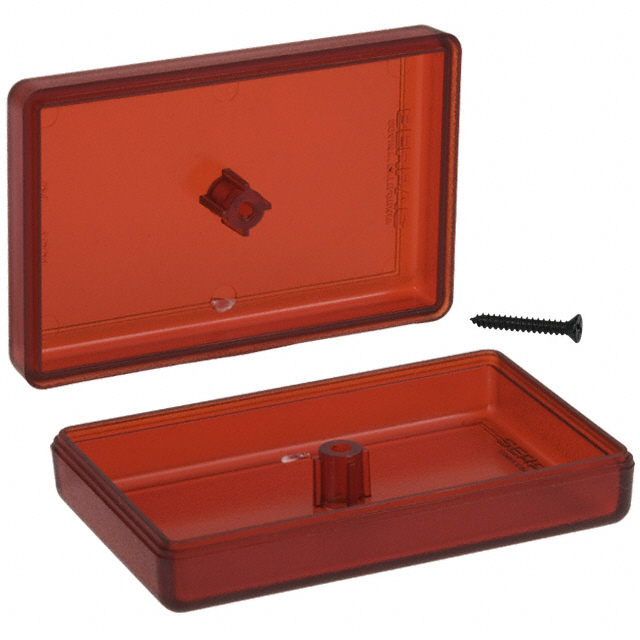

Serpac C4,TRRD	0.022 lb	9.98 g	IP40	1.52 mm	0.06 in	UL94 HB	Translucent - Red	19 cm²	2.94 in²	Box	Hand Held Split Sides	14.73 mm	0.58 in	54.1 mm	35.05 mm	2.13 in	1.38 in	ABS Plastic

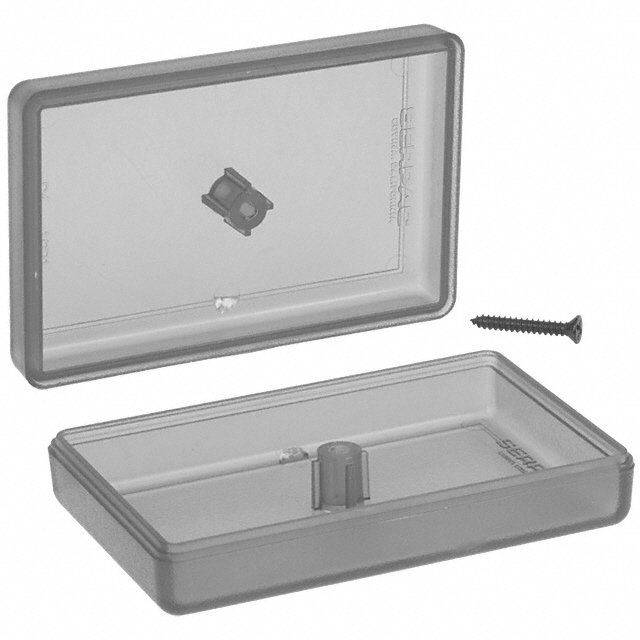

Serpac C4,TRGY	0.022 lb	9.98 g	IP40	1.52 mm	0.06 in	UL94 HB	Translucent - Gray	19 cm²	2.94 in²	Box	Hand Held Split Sides	14.73 mm	0.58 in	54.1 mm	35.05 mm	2.13 in	1.38 in	ABS Plastic
