83317E Series
Manufacturer: Belden Inc.
Beta
⌘K

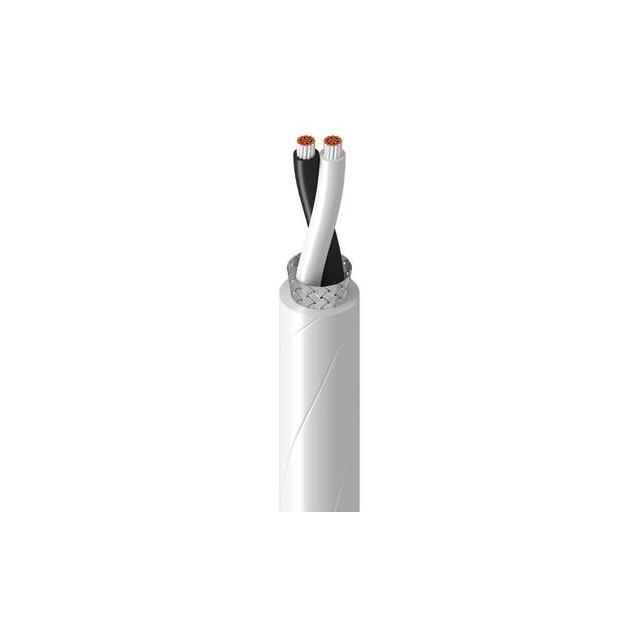

CABLE 2COND 26AWG WHT SHLD
| Part | Shield Coverage | Shield Material | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Number of Conductors | Cable Type | Conductor Material | Length | Length | Qualification | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type | Jacket (Insulation) Material | Conductor Strand [x] | Conductor Strand [x] | Jacket Color | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 85 % | Copper Silver Coated | -65 ░C | 200 °C | Tetrafluoroethylene (TFE) | 3.07 mm | 0.121 in | 600 V | 2 | Multi-Conductor | Copper Silver Coated | 304.8 m | 1000 ft | MIL-W-16878/4 Type E | 26 AWG | 0.279 mm | 0.011 " | Braid | Tetrafluoroethylene (TFE) | 34 AWG | 7 | White | ||
 Belden Inc. | 85 % | Copper Silver Coated | -65 ░C | 200 °C | Fluorinated Ethylene-Propylene (FEP) | 3.07 mm | 0.121 in | 2 | Multi-Conductor | Copper Silver Coated | 26 AWG | 0.279 mm | 0.011 " | Braid | Tetrafluoroethylene (TFE) | 34 AWG | 7 | White | 100 ft | 30.5 m | ||||
Belden Inc. | 85 % | Copper Silver Coated | -65 ░C | 200 °C | Tetrafluoroethylene (TFE) | 3.07 mm | 0.121 in | 600 V | 2 | Multi-Conductor | Copper Silver Coated | 152.4 m | 500 ft | MIL-W-16878/4 Type E | 26 AWG | 0.279 mm | 0.011 " | Braid | Tetrafluoroethylene (TFE) | 34 AWG | 7 | White |
