796387 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

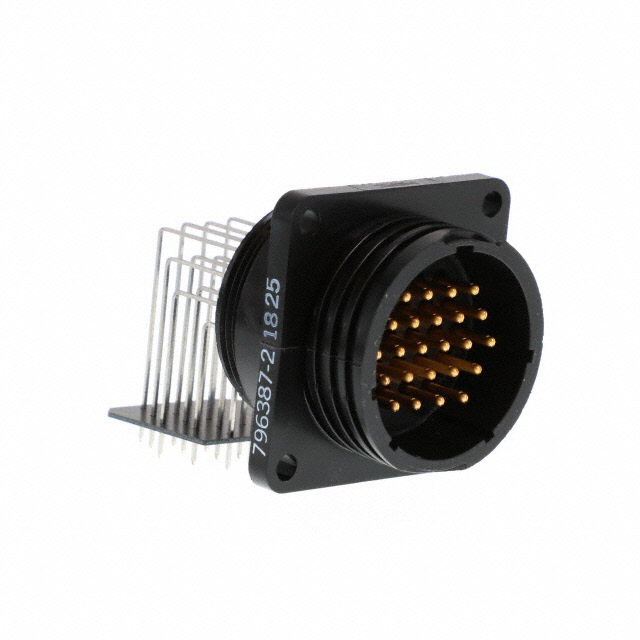

CONN RCPT MALE 24POS GOLD SOLDER
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Connector Type | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Primary Material | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Mounting Feature | Color | Contact Finish - Mating | Voltage Rating | Number of Positions | Orientation | Mounting Type | Shielding | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.76 Ám | 30 Áin | Brass | Receptacle Male Pins | Solder | -55 C | 105 ░C | UL94 V-0 | Plastic | 24 | 23 | Flange | Black | Gold | 250 VAC | 24 | Keyed | Panel Mount Right Angle Through Hole | Unshielded | Threaded |
