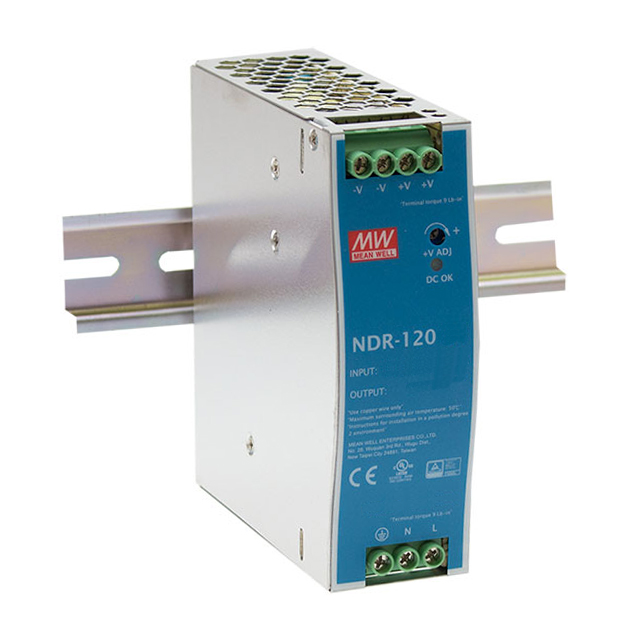

NDR-120 Series

Catalog

AC/DC DIN RAIL SUPPLY 12V 120W

Part	Minimum Load Required	Approval Agency	DC Voltage - Input (Min) [Min]	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Efficiency	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Input Type	Voltage - Output 1	Current - Output (Max) [Max]	Power (Watts)	Number of Outputs	Features	DC Voltage - Input (Max) [Max]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)
MEAN WELL USA Inc. NDR-120-12		CB CE cULus TUV	127 V	3000 V	40 mm	4.93 in	125.2 mm	113.5 mm	4.47 "	1.57 "	85.5 %	90 VAC	264 VAC	AC or DC	12 V	10 A	120 W	1	Adjustable Output Universal Input	370 V	ITE (Commercial)	70 °C	-20 °C
MEAN WELL USA Inc. NDR-120-24		CB CE cULus TUV	127 V	3000 V	40 mm	4.93 in	125.2 mm	113.5 mm	4.47 "	1.57 "	88 %	90 VAC	264 VAC	AC or DC	24 V		120 W	1	Adjustable Output Universal Input	370 V	ITE (Commercial)	70 °C	-20 °C	5 A
