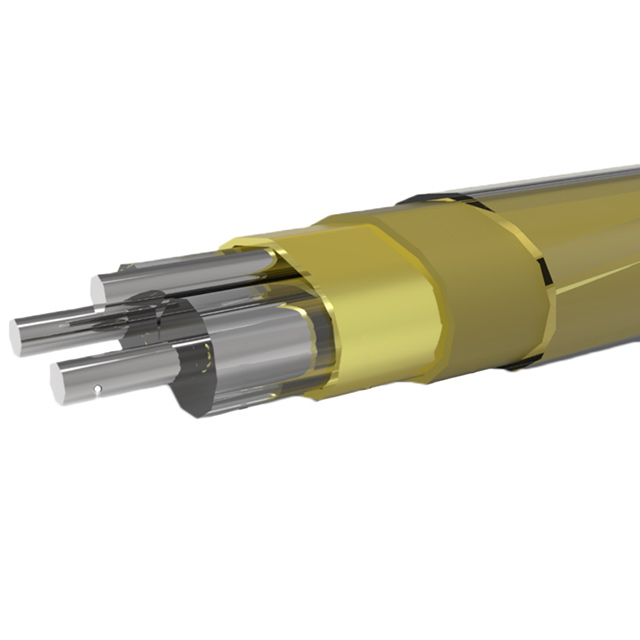

100068 Series

Manufacturer: Molex

Catalog

30 AWG 100 OHM SHIELDED PAIR

Part	Length	Spool Size	Spool Size	Length	Length	Shield Material	Conductor Material	Features	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Dielectric Material	Wire Gauge	Impedance	Jacket (Insulation) Material	Shield Type	Conductor Strand	Cable Type
Molex 1000680066

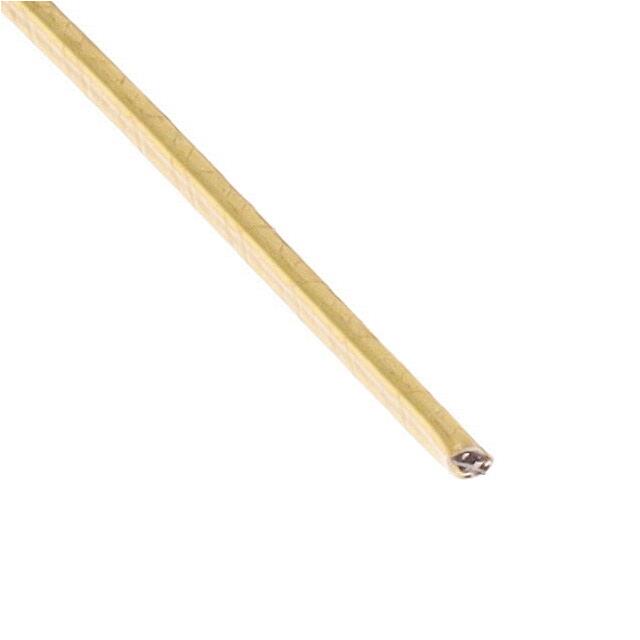

Molex 1000680080	Enter Number of Feet in Order Quantity	61 m	200 '	25 ft 50 ft	7.62 m 15.24 m	Aluminum	Copper Silver Coated	Drain Wire	1 ft 100 ft	30.48 m 300 mm	-20 C	105 ░C	0.046 in	1.17 mm	100 %	Fluoropolymer (FP)	32 AWG	90 Ohms	Polyester	Foil	Solid (2)	Twinaxial

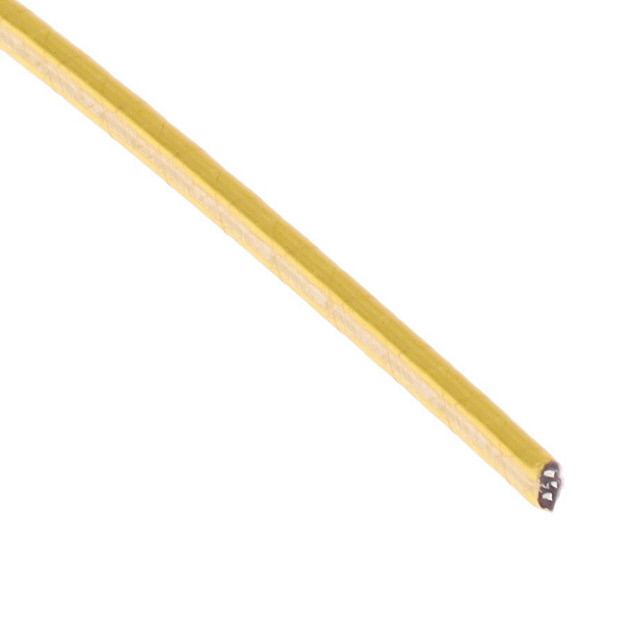

Molex 1000680107				25 ft 50 ft	7.62 m 15.24 m	Aluminum	Copper Silver Coated	Drain Wire	1 ft 100 ft	30.48 m 300 mm	-20 C	105 ░C	0.074 "	1.88 mm	100 %	Fluoropolymer (FP)	30 AWG	100 Ohms	Polyester	Foil	Solid (2)	Twinaxial
Molex 1000680085	Enter Number of Feet in Order Quantity	61 m	200 '	25 ft 50 ft	7.62 m 15.24 m	Aluminum	Copper Silver Coated	Drain Wire	1 ft 100 ft	30.48 m 300 mm	-20 C	105 ░C	0.075 in	1.9 mm	100 %	Fluoropolymer (FP)	28 AWG	90 Ohms	Polyester	Foil	Solid (2)	Twinaxial
