9AH0612 Series
Manufacturer: Sanyo Denki America Inc.
Beta
⌘K

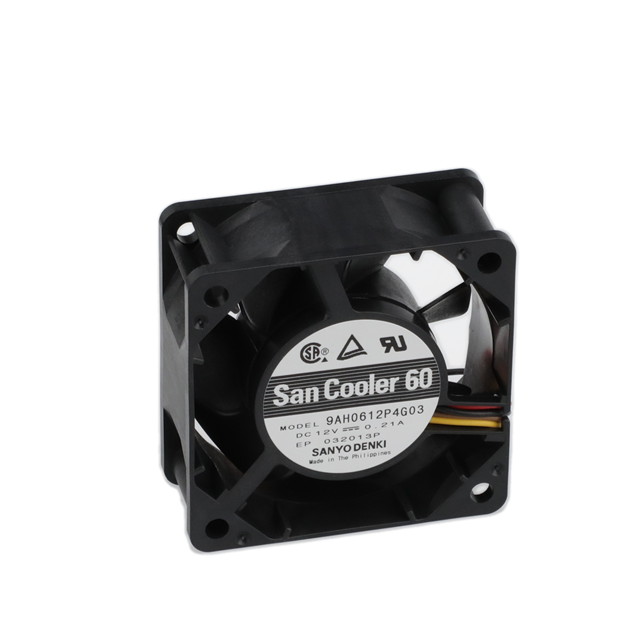

FAN AXIAL 60X25MM 12VDC WIRE
| Part | Voltage Range [Min] | Voltage Range [Max] | Material - Blade | Current Rating (Amps) | Material - Frame | Features | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Size / Dimension [z] | Size / Dimension [x] | Noise | Weight | Weight | Voltage - Rated | Width [y] | Bearing Type | Approval Agency | Fan Type | RPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki America Inc. | 10.2 VDC | 13.2 VDC | Plastic | 0.21 A | Plastic | Locked Rotor Protection PWM Control Speed Sensor (Tach) | -10 °C | 60 °C | 4 Wire Leads | 60 mm | 60 mm | 39 dB(A) | 0.176 lb | 80 g | 12 VDC | 25 mm | Ball | CSA TUV UR | Tubeaxial | 5600 RPM |
