6E17C025 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

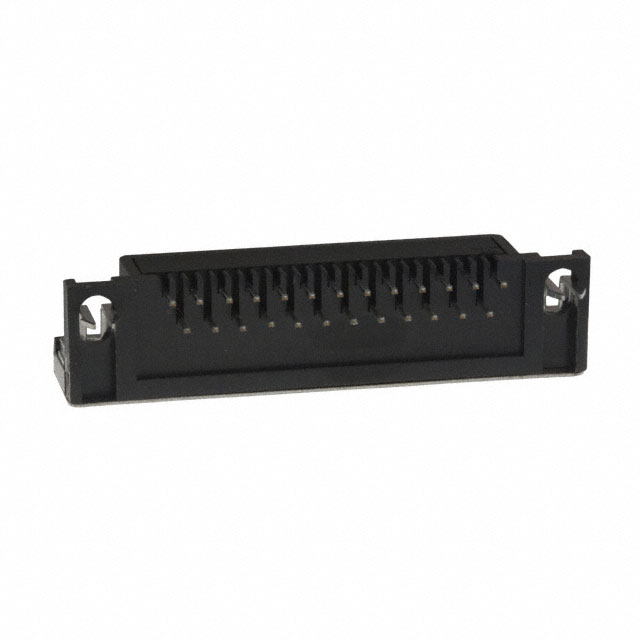

CONN D-SUB PLUG 25POS R/A SLDR
| Part | Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Dielectric Material | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Termination | Backset Spacing | Backset Spacing | Features | Mounting Type | Contact Type | Shell Material, Finish | Number of Rows [custom] | Current Rating (Amps) | Connector Style | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Flange Feature | Connector Type | Number of Positions | Material Flammability Rating | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Black | -55 C | 105 ░C | Copper Alloy | Glass Filled Nylon Polyamide (PA) | Gold | 30 Áin | 0.76 Ám | Solder | 8.08 mm | 0.318 " | Board Lock Grounding Indents Shielded | Right Angle Through Hole | Signal | Nickel Plated Steel | 2 | 5 A | D-Sub | B DB | 3 | 4-40 Mating Side Female Screwlock | Plug Male Pins | 25 | UL94 V-0 | |
Amphenol ICC (Commercial Products) | Black | -55 C | 105 ░C | Copper Alloy | Glass Filled Nylon Polyamide (PA) | Gold | 3 µin | 0.076 Ám | Solder | 8.08 mm | 0.318 " | Board Lock Grounding Indents Shielded | Right Angle Through Hole | Signal | Nickel Plated Steel | 2 | 5 A | D-Sub | B DB | 3 | Housing/Shell | Plug Male Pins | 25 | UL94 V-0 | 4-40 |
 Amphenol ICC (Commercial Products) | Black | -55 C | 105 ░C | Copper Alloy | Glass Filled Nylon Polyamide (PA) | Gold | 30 Áin | 0.76 Ám | Solder | 8.08 mm | 0.318 " | Board Lock Shielded | Right Angle Through Hole | Signal | Nickel Plated Steel | 2 | 5 A | D-Sub | B DB | 3 | Housing/Shell | Receptacle Female Sockets | 25 | UL94 V-0 | 4-40 |
Amphenol ICC (Commercial Products) | Black | -55 C | 105 ░C | Copper Alloy | Glass Filled Nylon Polyamide (PA) | Gold | 3 µin | 0.076 Ám | Solder | 8.08 mm | 0.318 " | Board Lock Grounding Indents Shielded | Right Angle Through Hole | Signal | Nickel Plated Steel | 2 | 5 A | D-Sub | B DB | 3 | Housing/Shell (Unthreaded) | Plug Male Pins | 25 | UL94 V-0 |
