LFL21 Series

Catalog

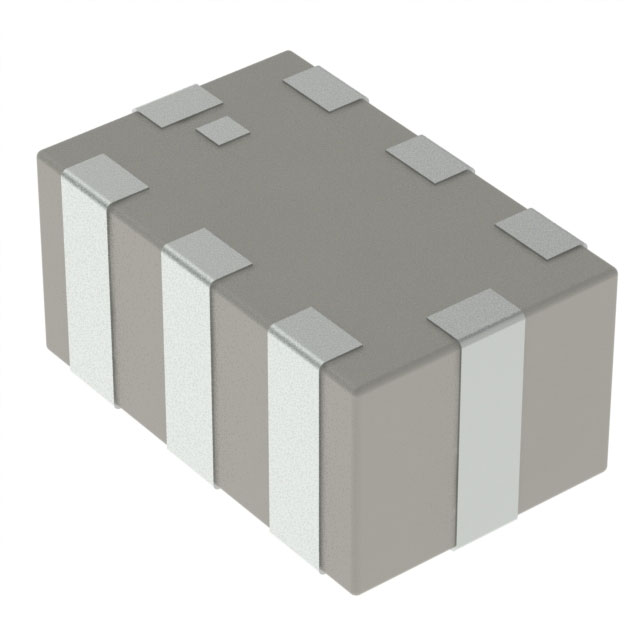

RF FILTER 0805

Part	Mounting Type	Height (Max)	Height (Max) [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Package / Case	Package / Case	Bandwidth	Insertion Loss	Frequency	Filter Type [custom]
Murata Power Solutions Inc. LFL211G89TC1A015	Surface Mount	1.05 mm	0.041 in	2 mm	0.079 in	0.049 in	1.25 mm	0805 (2012 Metric)	8 Leads
Murata Power Solutions Inc. LFL211G84TC1A005	Surface Mount	1.05 mm	0.041 in	2 mm	0.079 in	0.049 in	1.25 mm	0805 (2012 Metric)	8 Leads
Murata Power Solutions Inc. LFL211G90TC1A008	Surface Mount	1.05 mm	0.041 in	2 mm	0.079 in	0.049 in	1.25 mm	0805 (2012 Metric)	8 Leads	12.5 MHz	0.47 dB	1.907 GHz	Low Pass
Murata Power Solutions Inc. LFL215G37TC1A210	Surface Mount	1.05 mm	0.041 in	2 mm	0.079 in	0.049 in	1.25 mm	0805 (2012 Metric)	8 Leads	475 MHz	0.7 dB	5.375 GHz	Low Pass
Murata Power Solutions Inc. LFL212G45TC1A023	Surface Mount	1.05 mm	0.041 in	2 mm	0.079 in	0.049 in	1.25 mm	0805 (2012 Metric)	8 Leads
Murata Power Solutions Inc. LFL212G45TC1A007
Murata Power Solutions Inc. LFL211G79TC1A011	Surface Mount	1.05 mm	0.041 in	2 mm	0.079 in	0.049 in	1.25 mm	0805 (2012 Metric)	8 Leads
