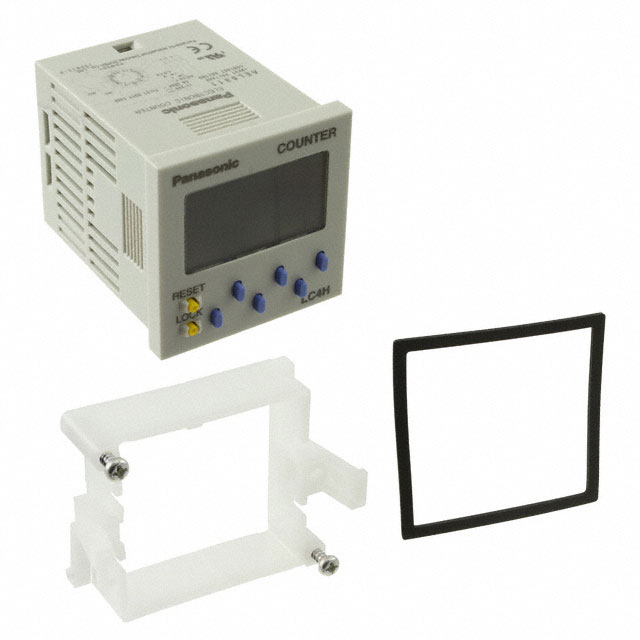

LC4H Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

COUNTER LCD 4 CHAR 12-24V PNL MT

Part	Input Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Count Rate	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Operating Mode	Display Type	Termination Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Characters Per Row	Number of Characters Per Row	Type	Reset	Ingress Protection	Output Type	Voltage - Supply

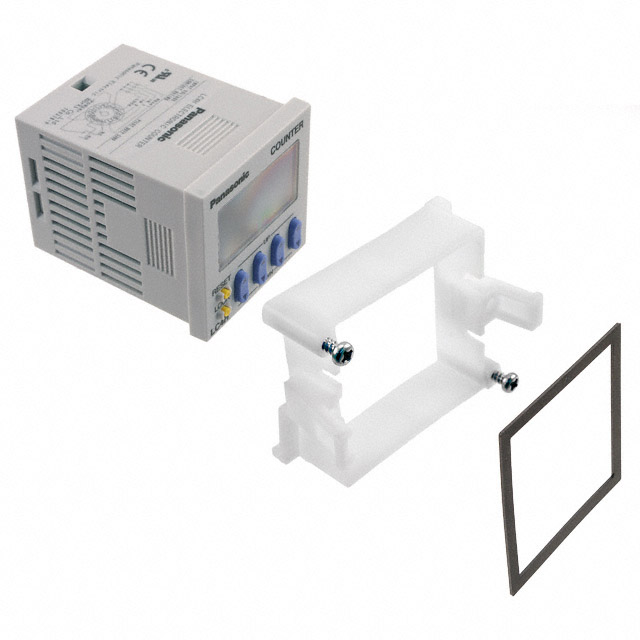

Panasonic Industrial Automation Sales LC4H-R4-DC24V	No Voltage	45 mm	45 mm	5 kHz 30 Hz	55 °C	-10 °C	Command Down Individual Quadrature Up	LCD - Dual Color Characters Backlight	Plug In 11 Pin (Octal)	24 V	12 V	4	4	Preset	External Front Panel	IP66
Panasonic Industrial Automation Sales LC4H-PS-R6-AC240V	No Voltage	45 mm	45 mm	5 kHz 30 Hz	55 °C	-10 °C	Command Down Individual Quadrature Up	LCD - Dual Color Characters Backlight	Plug In 11 Pin (Octal)	240 VAC	100 VAC	6	6	Preset	External Front Panel	IP66

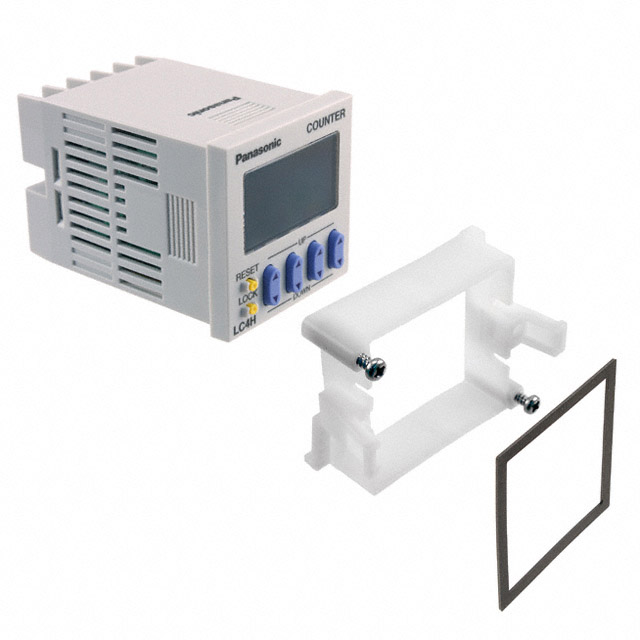

Panasonic Industrial Automation Sales LC4H-R4-DC24VS	No Voltage	45 mm	45 mm	5 kHz 30 Hz	55 °C	-10 °C	Command Down Individual Quadrature Up	LCD - Dual Color Characters Backlight	Screw Terminal	24 V	12 V	4	4	Preset	External Front Panel	IP66
Panasonic Industrial Automation Sales LC4H-R6-DC24V	No Voltage	45 mm	45 mm	5 kHz 30 Hz	55 °C	-10 °C	Command Down Individual Quadrature Up	LCD - Dual Color Characters Backlight	Plug In 11 Pin (Octal)	48 V	12 V	6	6	Preset	External Front Panel	IP66

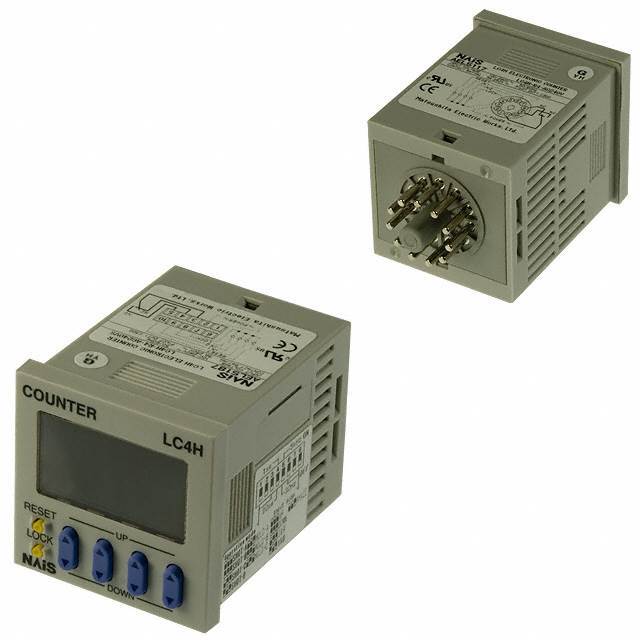

Panasonic Industrial Automation Sales LC4H-R4-AC240V	No Voltage	45 mm	45 mm	5 kHz 30 Hz	55 °C	-10 °C	Command Down Individual Quadrature Up	LCD - Dual Color Characters Backlight	Plug In 11 Pin (Octal)	240 VAC	100 VAC	4	4	Preset	External Front Panel	IP66
Panasonic Industrial Automation Sales LC4H-R6-AC240V	No Voltage	45 mm	45 mm	5 kHz 30 Hz	55 °C	-10 °C	Command Down Individual Quadrature Up	LCD - Dual Color Characters Backlight	Plug In 11 Pin (Octal)	240 VAC	100 VAC	6	6	Preset	External Front Panel	IP66

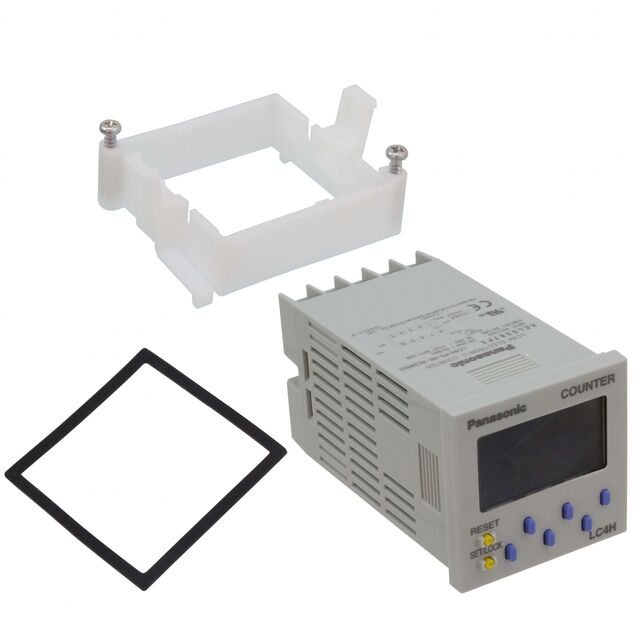

Panasonic Industrial Automation Sales LC4H-PS-R6-AC240VS	No Voltage	45 mm	45 mm	5 kHz 30 Hz	55 °C	-10 °C	Command Down Individual Quadrature Up	LCD - Dual Color Characters Backlight	Screw Terminal	240 VAC	100 VAC	6	6	Preset	External Front Panel	IP66

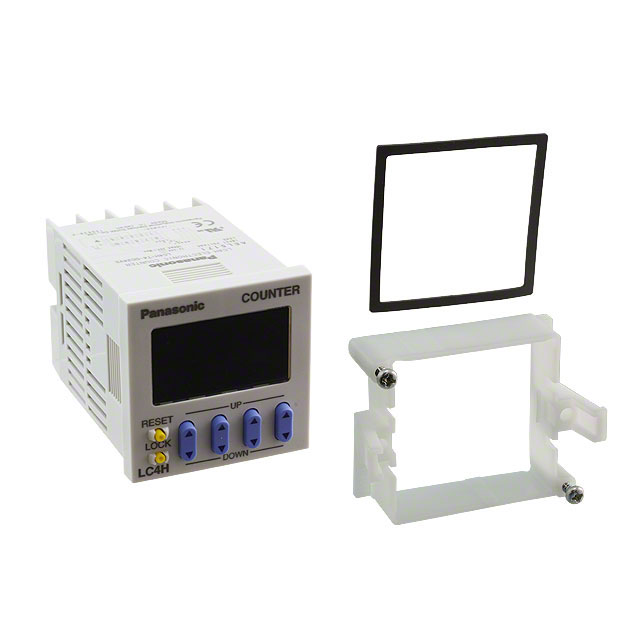

Panasonic Industrial Automation Sales LC4H-T4-DC24VS	No Voltage	45 mm	45 mm	5 kHz 30 Hz	55 °C	-10 °C	Command Down Individual Quadrature Up	LCD - Dual Color Characters Backlight	Screw Terminal	24 V	12 V	4	4	Preset	External Front Panel	IP66	Solid State

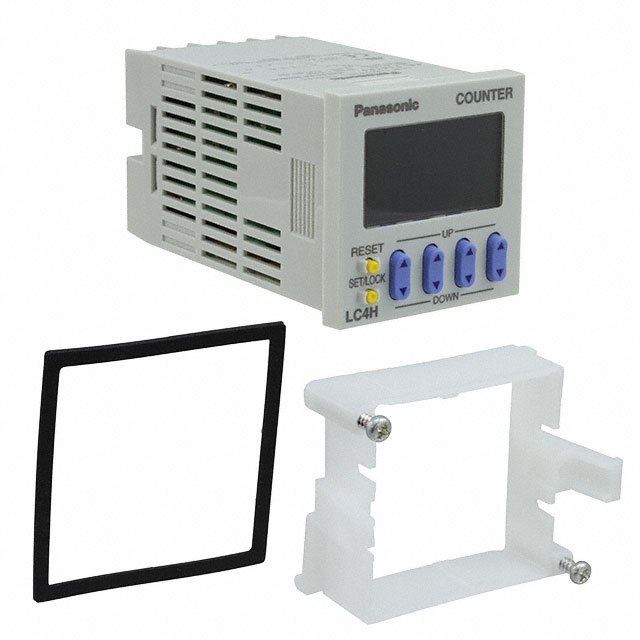

Panasonic Industrial Automation Sales LC4H-PS-R4-AC240VS	No Voltage	45 mm	45 mm	5 kHz 30 Hz	55 °C	-10 °C	Command Down Individual Quadrature Up	LCD - Dual Color Characters Backlight	Screw Terminal	240 VAC	100 VAC	4	4	Preset	External Front Panel	IP66
Panasonic Industrial Automation Sales LC4H-S-R6-24VS	No Voltage	45 mm	45 mm	5 kHz 30 Hz	55 °C	-10 °C	Command Down Individual Quadrature Up	LCD - Dual Color Characters Backlight	Screw Terminal	24 V	12 V	6	6	Batch Tachometer Totalizer	External Front Panel	IP66		24 VAC
