A-CCS 08 Series

Catalog

CONN SOCKET PLCC 84POS GOLD

Part	Material Flammability Rating	Current Rating (Amps)	Contact Resistance	Termination Post Length	Termination Post Length	Pitch - Mating	Pitch - Mating	Housing Material	Contact Finish - Mating	Pitch - Post	Pitch - Post	Mounting Type	Contact Material - Post	Contact Material - Mating	Termination	Features	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post

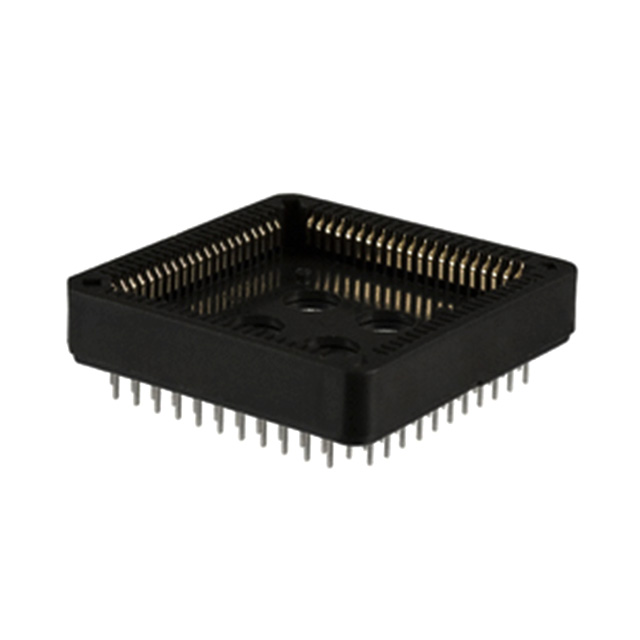

Assmann WSW Components A-CCS 084-G-T	UL94 V-0	1 A	15 mOhm	0.132 "	3.35 mm	1.27 mm	0.05 in	Polybutylene Terephthalate (PBT)	Gold	0.1 in	2.54 mm	Through Hole	Phosphor Bronze	Phosphor Bronze	Solder	Closed Frame	Gold	-40 C	105 ░C	PLCC

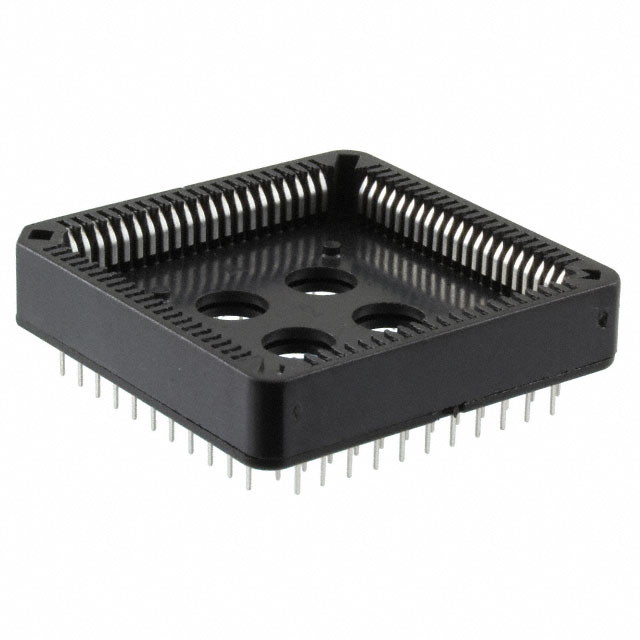

Assmann WSW Components A-CCS 084-Z-T	UL94 V-0	1 A	15 mOhm	0.132 "	3.35 mm	1.27 mm	0.05 in	Polybutylene Terephthalate (PBT)		0.1 in	2.54 mm	Through Hole	Phosphor Bronze	Phosphor Bronze	Solder	Closed Frame	Tin	-40 C	105 ░C	PLCC	4.06 µm	160 µin
