15SH-B Series
Manufacturer: Adam Tech
Beta
⌘K
CONN HEADER SMD R/A 10POS 1.5MM
| Part | Style | Insulation Color | Number of Positions | Contact Shape | Shrouding | Number of Rows | Current Rating (Amps) | Number of Positions Loaded | Contact Material | Contact Type | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Mounting Type | Insulation Height [z] | Insulation Height [z] | Termination | Contact Finish - Post | Voltage Rating | Connector Type | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Board to Cable/Wire | Natural | 10 | Square | Shrouded - 4 Wall | 1 | 3 A | All | Brass | Male Pin | UL94 V-0 | 85 °C | -25 °C | Friction Lock | Right Angle Surface Mount | 4.45 mm | 0.175 in | Solder | Tin | 350 VAC | Header | ||

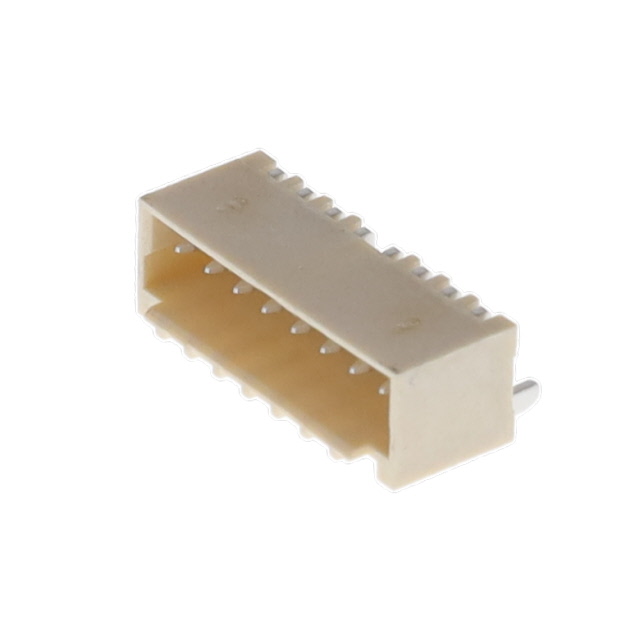

 Adam Tech | Board to Cable/Wire | Natural | 8 | Square | Shrouded - 4 Wall | 1 | 3 A | All | Brass | Male Pin | UL94 V-0 | 85 °C | -25 °C | Friction Lock | Right Angle Surface Mount | 4.45 mm | 0.175 in | Solder | Tin | 350 VAC | Header | ||
 Adam Tech | Board to Cable/Wire | Natural | Square | Shrouded - 4 Wall | 1 | 3 A | All | Brass | Male Pin | UL94 V-0 | 85 °C | -25 °C | Friction Lock | Right Angle Surface Mount | 4.45 mm | 0.175 in | Solder | Tin | 350 VAC | Header | |||
Adam Tech | Board to Cable/Wire | Natural | 9 | Square | Shrouded - 4 Wall | 1 | 3 A | All | Brass | Male Pin | UL94 V-0 | 85 °C | -25 °C | Friction Lock | Right Angle Surface Mount | 4.45 mm | 0.175 in | Solder | Tin | 350 VAC | Header | ||

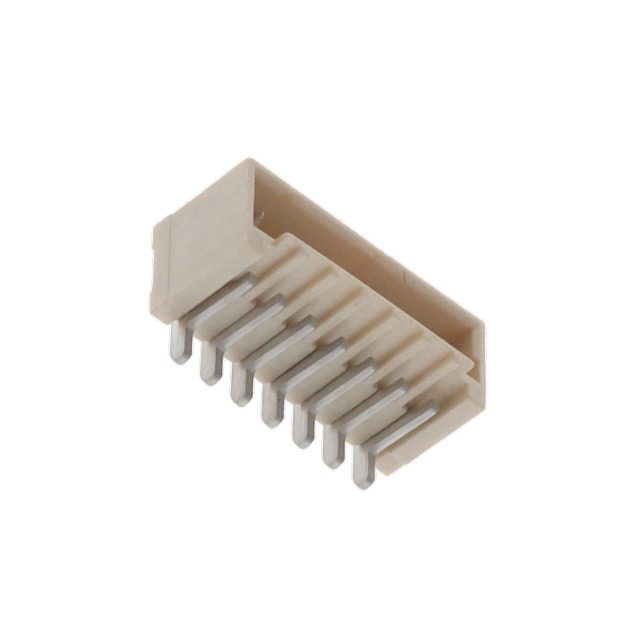

 Adam Tech | Board to Cable/Wire | Ivory | 7 | Square | Shrouded - 4 Wall | 1 | 1.5 A | All | Brass | Male Pin | UL94 V-0 | 85 °C | -25 °C | Friction Lock | Surface Mount | Solder | Tin | 100 VAC | Header | 5.74 mm | 0.226 in | ||

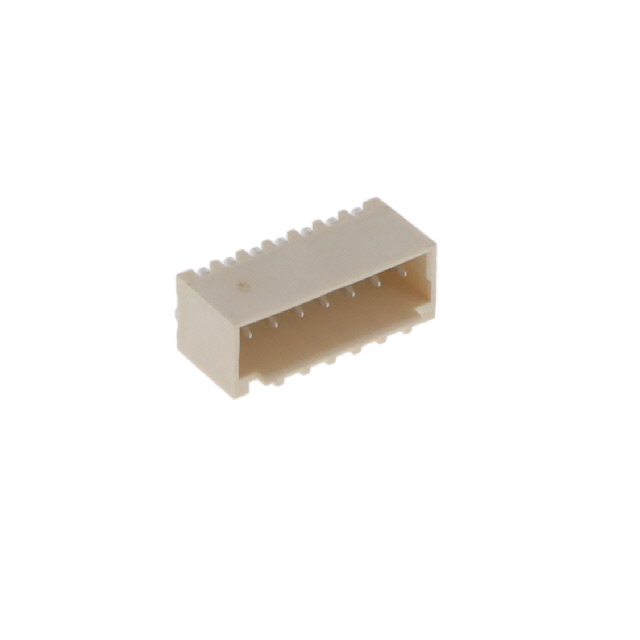

 Adam Tech | Board to Cable/Wire | Natural | 7 | Square | Shrouded - 4 Wall | 1 | 3 A | All | Brass | Male Pin | UL94 V-0 | 85 °C | -25 °C | Friction Lock | Right Angle Surface Mount | 4.45 mm | 0.175 in | Solder | Tin | 350 VAC | Header | ||

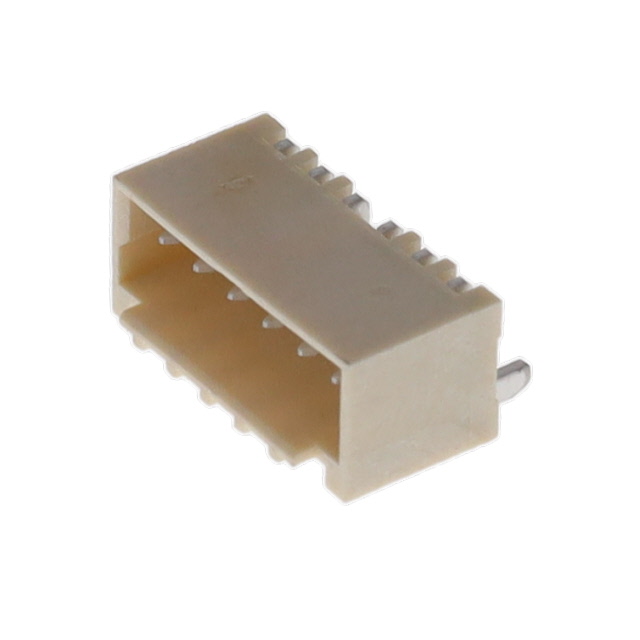

 Adam Tech | Board to Cable/Wire | Natural | 6 | Square | Shrouded - 4 Wall | 1 | 3 A | All | Brass | Male Pin | UL94 V-0 | 85 °C | -25 °C | Friction Lock | Right Angle Surface Mount | 4.45 mm | 0.175 in | Solder | Tin | 350 VAC | Header | ||

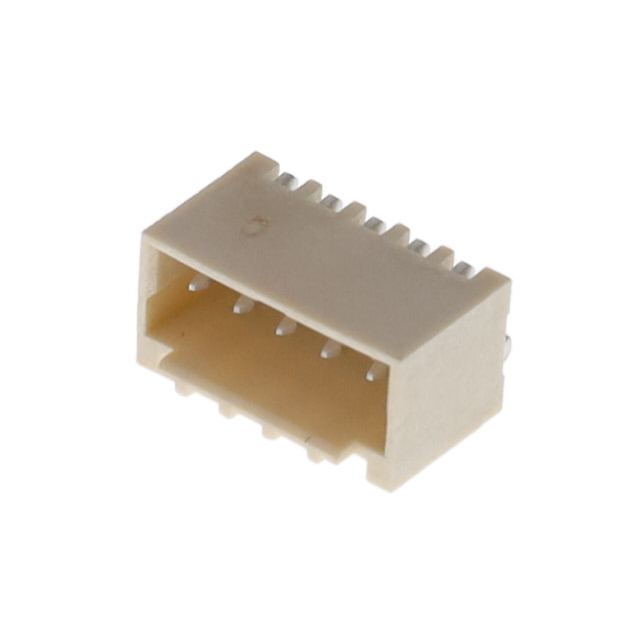

 Adam Tech | Board to Cable/Wire | Natural | 5 | Square | Shrouded - 4 Wall | 1 | 3 A | All | Brass | Male Pin | UL94 V-0 | 85 °C | -25 °C | Friction Lock | Right Angle Surface Mount | 4.45 mm | 0.175 in | Solder | Tin | 350 VAC | Header |
