P16OAR10 Series
Manufacturer: E-Switch
Beta
⌘K

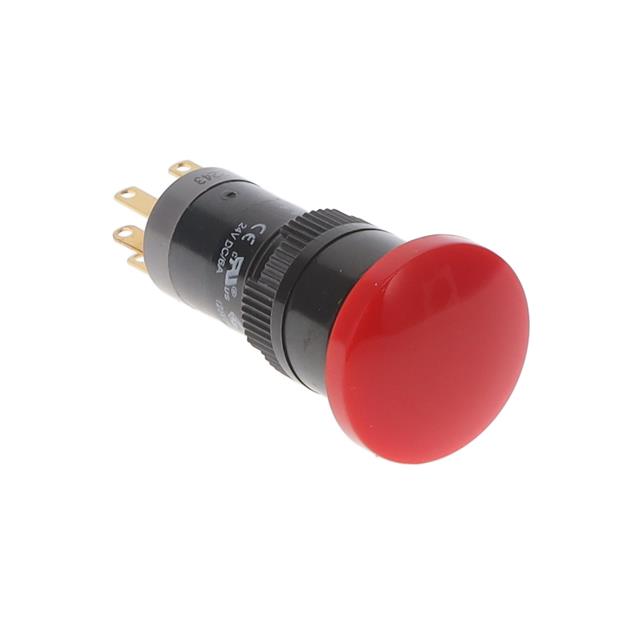

SWITCH PUSHBUTTON SPDT 8A 125V
| Part | Mechanical Life | Electrical Life | Actuator Marking | Current Rating (Amps) | Termination Style | Voltage Rating - AC | Mounting Type | Switch Function | Type | Actuator Type | Panel Cutout Dimensions [diameter] | Circuit | Color - Actuator/Cap | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 100000 Cycles | 50000 Cycles | No Marking | 6 A 8 A | Quick Connect - 0.110" (2.8mm) | 125 V | Panel Mount Front | On-Mom | Standard | Button Mushroom Round | 16 mm | SPDT | Red | 55 °C | -20 ░C | 24 V |
