EZM22 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN EDGE DUAL FMALE 44POS 0.156

Part	Operating Temperature [Max]	Operating Temperature [Min]	Color	Card Thickness	Card Thickness	Read Out	Number of Positions	Material - Insulation	Number of Positions/Bay/Row [custom]	Card Type	Contact Type	Termination	Mounting Type	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Gender	Number of Rows	Contact Finish	Contact Material

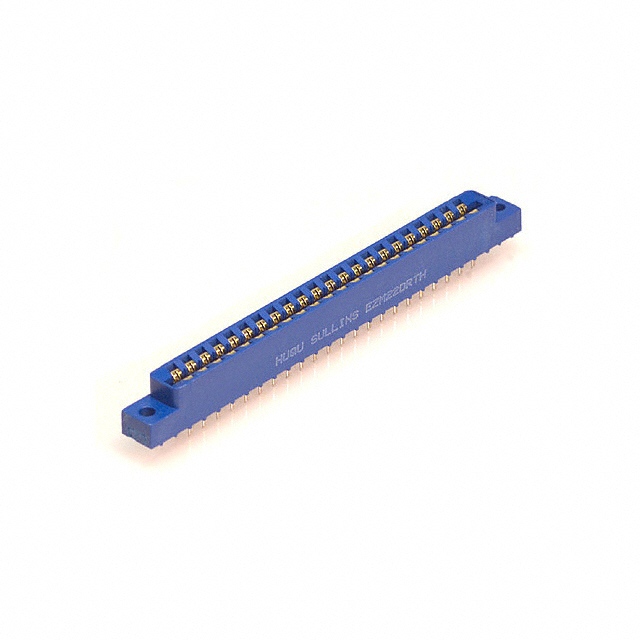

Sullins Connector Solutions EZM22DRTH	125 °C	-65 ░C	Blue	0.062 in	1.57 mm	Dual	44	Polybutylene Terephthalate (PBT)	22	Non Specified - Dual Edge	Full Bellows	Solder	Through Hole	0.125 in	3.18 mm	Top Mount Opening Unthreaded	10 Áin	0.25 Ám	0.156 in	3.96 mm	Female	2	Gold	Phosphor Bronze

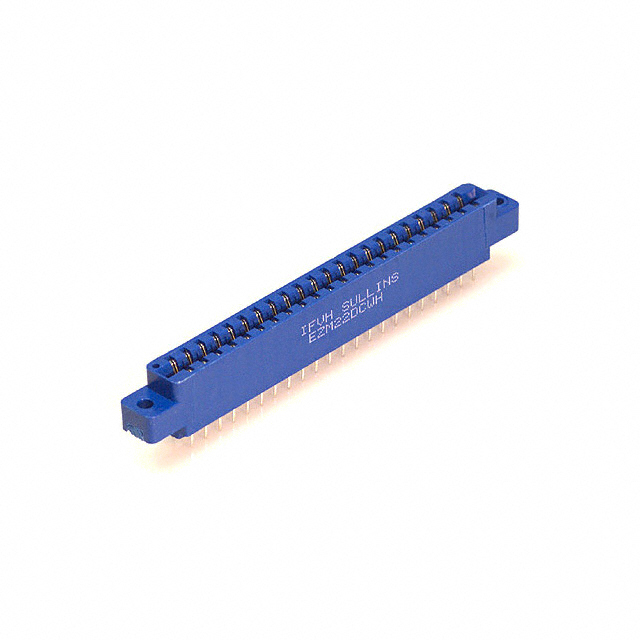

Sullins Connector Solutions EZM22DCWH	125 °C	-65 ░C	Blue	0.062 in	1.57 mm	Dual	44	Polybutylene Terephthalate (PBT)	22	Non Specified - Dual Edge	Hairpin Bellows	Solder	Through Hole	0.125 in	3.18 mm	Top Mount Opening Unthreaded	10 Áin	0.25 Ám	0.156 in	3.96 mm	Female	2	Gold	Phosphor Bronze
Sullins Connector Solutions EZM22DREH	125 °C	-65 ░C	Blue	0.062 in	1.57 mm	Dual	44	Polybutylene Terephthalate (PBT)	22	Non Specified - Dual Edge	Full Bellows	Solder Eyelet(s)		0.125 in	3.18 mm	Top Mount Opening Unthreaded	10 Áin	0.25 Ám	0.156 in	3.96 mm	Female	2	Gold	Phosphor Bronze

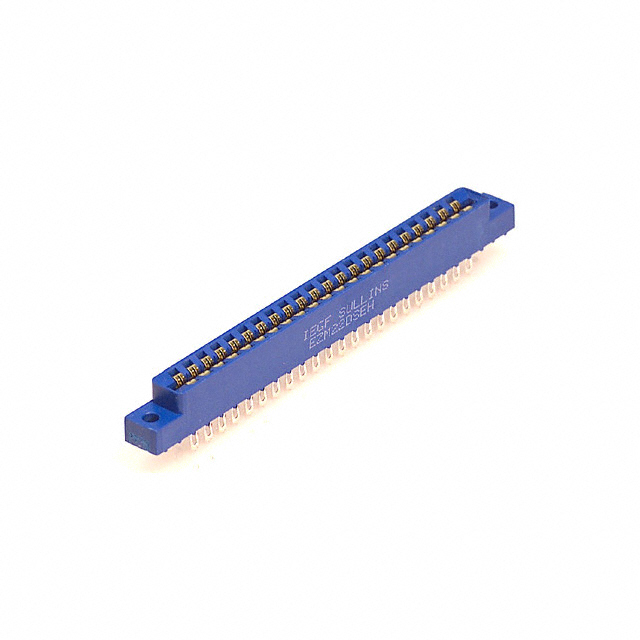

Sullins Connector Solutions EZM22DSEH	125 °C	-65 ░C	Blue	0.062 in	1.57 mm	Dual	44	Polybutylene Terephthalate (PBT)	22	Non Specified - Dual Edge	Full Bellows	Solder Eyelet(s)		0.125 in	3.18 mm	Top Mount Opening Unthreaded	10 Áin	0.25 Ám	0.156 in	3.96 mm	Female	2	Gold	Phosphor Bronze

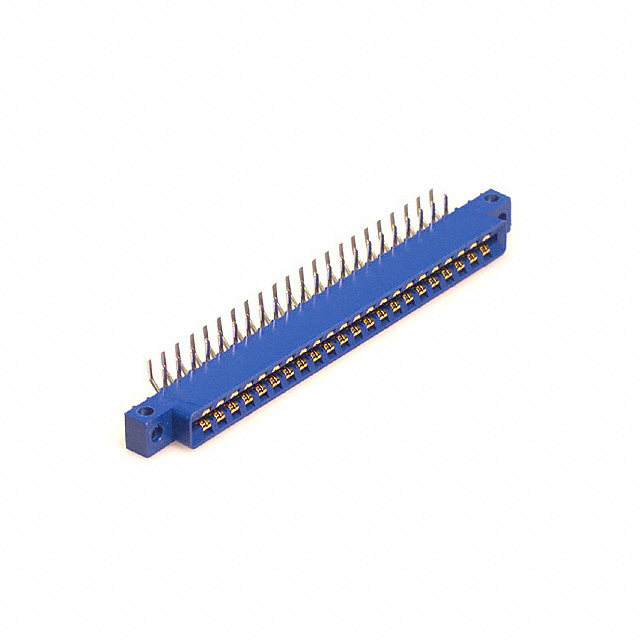

Sullins Connector Solutions EZM22DRAS	125 °C	-65 ░C	Blue	0.062 in	1.57 mm	Dual	44	Polybutylene Terephthalate (PBT)	22	Non Specified - Dual Edge	Full Bellows	Solder	Through Hole Right Angle	0.125 in	3.18 mm	Side Mount Opening Unthreaded	10 Áin	0.25 Ám	0.156 in	3.96 mm	Female	2	Gold	Phosphor Bronze
