430856 Series

Catalog

UT15-200-F2-4040-TB-W6

Part	Resistance	Features	Current - Max [Max]	Number of Stages	Size / Dimension [x]	Size / Dimension [y]	Delta Tmax @ Th	Voltage - Max [Max]	Qmax @ Th	Height [z]	Operating Temperature
Laird Thermal Systems, Inc. 430856-504	1.37 Ohms	Lapped Lead Wires	15.4 A	1	40 mm	40 mm	68 °C	25 V	236.6 W	3.3 mm	80 °C
Laird Thermal Systems, Inc. 430856-502	1.37 Ohms	Lead Wires Sealed - Epoxy	15.4 A	1	40 mm	40 mm	68 °C	25 V	236.6 W	3.3 mm	80 °C

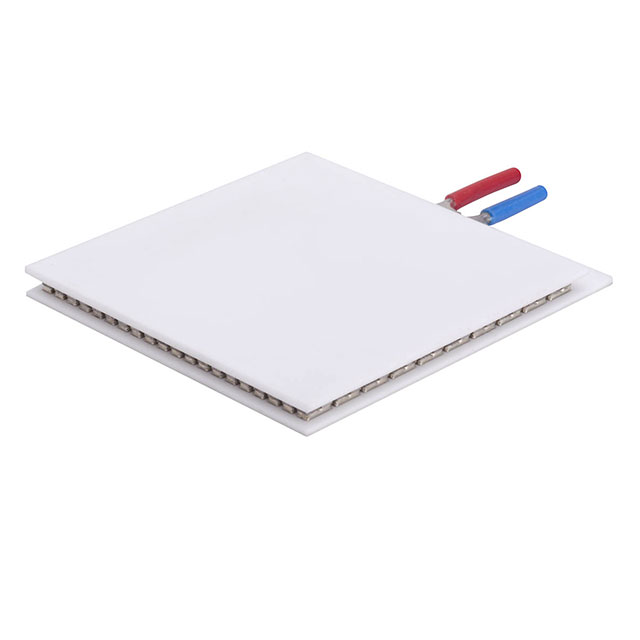

Laird Thermal Systems, Inc. 430856-500	1.37 Ohms	Lead Wires Non-Sealed	15.4 A	1	40 mm	40 mm	68 °C	25 V	236.6 W	3.3 mm	80 °C
