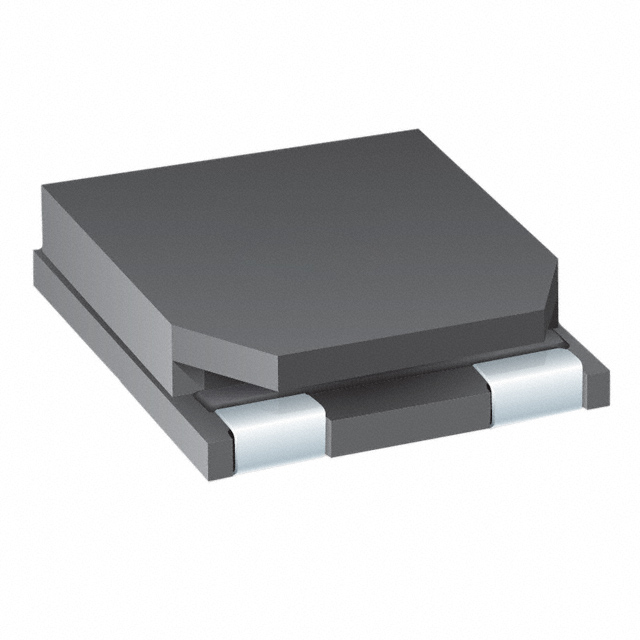

SRP1204 Series
Manufacturer: Bourns Inc.
Beta
⌘K
FIXED IND 1.1UH 12A 4.5 MOHM SMD
| Part | Type | DC Resistance (DCR) [Max] | Current - Saturation (Isat) | Material - Core | Shielding | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Tolerance | Height - Seated (Max) | Height - Seated (Max) [Max] | Current Rating (Amps) | Mounting Type | Inductance Frequency - Test | Inductance | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Drum Core Wirewound | 4.5 mOhm | 13 A | Ferrite | Shielded | 12.5 mm | 0.492 " | 12.5 mm | 0.492 " | 20 % | 4 mm | 0.157 in | 12 Amps | Surface Mount | 100 kHz | 1.1 µH | -55 C | 150 °C | Nonstandard |
