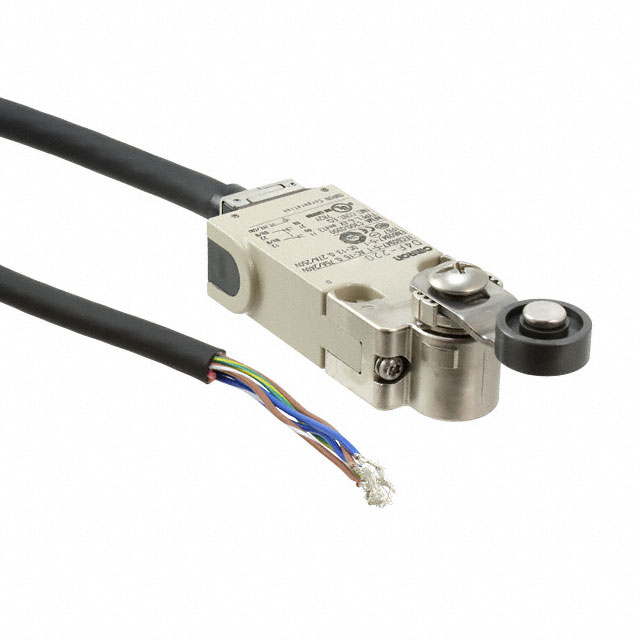

D4F-220 Series

Catalog

SWITCH SNAP ACT DPST-NC 15A 120V

Part	Features	Ingress Protection	Switch Function	Release Force	Termination Style	Electrical Life	Circuit	Mechanical Life	Overtravel	Operating Force	Voltage Rating - DC	Mounting Type	Actuator Type	Voltage Rating - AC	Pretravel	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)
Omron Automation and Safety D4F-220-1R	Cable Length 1m	IP67 - Dust Tight Waterproof	On-Mom	51 gf	Cable Leads	150000 Cycles	DPST-NC	10000000 Cycles	40 °	510 gf	125 VDC	Chassis Mount	Roller Side Rotary	120 V	12 °	-30 ░C	70 °C	15 A 550 mA
Omron Automation and Safety D4F-220-5D	Cable Length 5m	IP67 - Dust Tight Waterproof	On-Mom	51 gf	Cable Leads	150000 Cycles	DPST-NC	10000000 Cycles	40 °	510 gf	125 VDC	Chassis Mount	Roller Side Rotary	120 V	12 °	-30 ░C	70 °C	15 A 550 mA
Omron Automation and Safety D4F-220-3D	Cable Length 3m	IP67 - Dust Tight Waterproof	On-Mom	51 gf	Cable Leads	150000 Cycles	DPST-NC	10000000 Cycles	40 °	510 gf	125 VDC	Chassis Mount	Roller Side Rotary	120 V	12 °	-30 ░C	70 °C	15 A 550 mA
Omron Automation and Safety D4F-220-3R	Cable Length 3m	IP67 - Dust Tight Waterproof	On-Mom	51 gf	Cable Leads	150000 Cycles	DPST-NC	10000000 Cycles	40 °	510 gf	125 VDC	Chassis Mount	Roller Side Rotary	120 V	12 °	-30 ░C	70 °C	15 A 550 mA
