TBU-05 Series
Manufacturer: Adam Tech
Beta
⌘K
TERMINAL BLOCK, 5 POSITION
| Part | Mounting Type | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Terminal Screw Finish | Terminal Screw Material | Material - Insulation | Top Termination | Number of Rows | Pitch | Pitch | Voltage Rating | Features | Wire Gauge [Min] | Wire Gauge [Max] | Current Rating (Amps) | Number of Wire Entries | Bottom Termination | Color | Terminal Block Type | Number of Circuits | Barrier Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

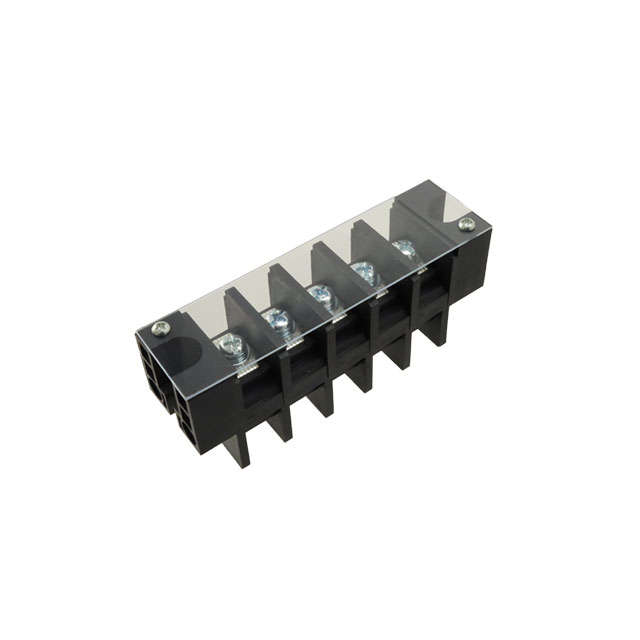

 Adam Tech | Chassis Panel | UL94 V-0 | 130 °C | -40 C | Zinc | Steel | Polybutylene Terephthalate (PBT) | Screws | 1 | 0.827 in | 21 mm | 600 V | Flange | 2 AWG | 8 AWG | 115 A | 5 | Screw | Black | Barrier Block | 5 | 2 Wall (Dual) |

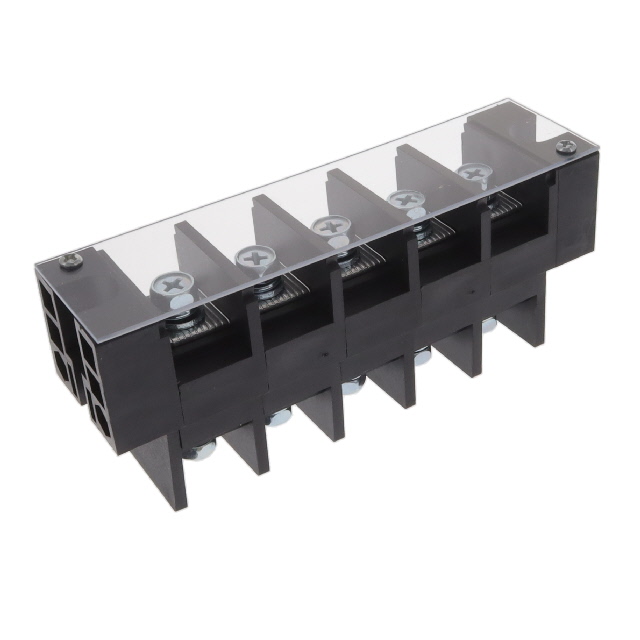

 Adam Tech | Chassis Panel | UL94 V-0 | 130 °C | -40 C | Nickel | Steel | Polybutylene Terephthalate (PBT) | Screws | 1 | 0.63 in | 16 mm | 600 V | Flange | 6 AWG | 14 AWG | 65 A | 5 | Screw | Black | Barrier Block | 5 | 2 Wall (Dual) |
