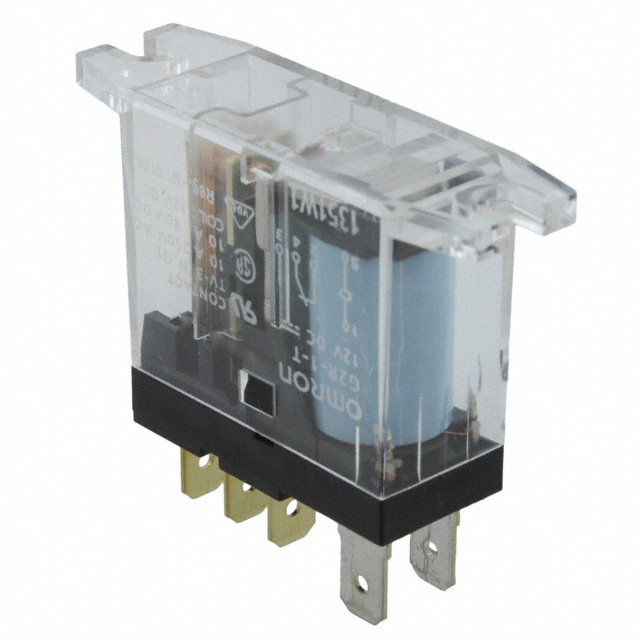

G2R-1-T Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
RELAY GEN PURPOSE SPDT 10A 220V
| Part | Coil Resistance | Operate Time | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Mounting Type | Seal Rating | Release Time | Contact Rating (Current) | Must Operate Voltage | Coil Current | Contact Material | Coil Type | Relay Type | Coil Voltage | Must Release Voltage | Switching Voltage | Contact Form | Termination Style | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | 20.2 kOhms | 15 ms | 70 °C | -40 C | CSA TUV UR VDE | Chassis Mount | Sealed - Flux Protection | 10 ms | 10 A | 176 VAC | 5.3 mA | Silver Alloy | Non Latching | General Purpose | 220 VAC/DC | 66 VAC | 125 VDC 380 VAC | SPDT (1 Form C) | Quick Connect | 1250 W 3800 VA |
Omron Automation and Safety | 260 Ohms | 15 ms | 70 °C | -40 C | CSA TUV UR VDE | Chassis Mount | Sealed - Flux Protection | 10 ms | 10 A | 19.2 VAC | 0.0375 A | Silver Alloy | Non Latching | General Purpose | 24 VAC | 7.2 VAC | 125 VDC 380 VAC | SPDT (1 Form C) | Quick Connect | 1250 W 3800 VA |
Omron Automation and Safety | 25 kOhms | 15 ms | 70 °C | -40 C | CSA TUV UR VDE | Chassis Mount | Sealed - Flux Protection | 10 ms | 10 A | 176 VAC | 5.3 mA | Silver Alloy | Non Latching | General Purpose | 220 VAC/DC | 66 VAC | 125 VDC 380 VAC | SPDT (1 Form C) | Quick Connect | 1250 W 3800 VA |
Omron Automation and Safety | 15 ms | 70 °C | -40 C | CSA TUV UR VDE | Chassis Mount | Sealed - Flux Protection | 10 ms | 10 A | 192 VAC | 3.8 mA | Silver Alloy | Non Latching | General Purpose | 240 VAC/DC | 72 VAC/DC | 125 VDC 380 VAC | SPDT (1 Form C) | Quick Connect | 1250 W 3800 VA | |
Omron Automation and Safety | 15 ms | 70 °C | -40 C | CSA TUV UR VDE | Chassis Mount | Sealed - Flux Protection | 5 ms | 10 A | 16.8 VDC | 21.8 mA | Silver Alloy | Non Latching | General Purpose | 24 VDC | 3.6 VDC | 125 VDC 380 VAC | SPDT (1 Form C) | Quick Connect | 1250 W 3800 VA | |
Omron Automation and Safety | 65 Ohms | 15 ms | 70 °C | -40 C | CSA TUV UR VDE | Chassis Mount | Sealed - Flux Protection | 10 ms | 10 A | 9.6 VAC/DC | 0.075 A | Silver Alloy | Non Latching | General Purpose | 12 VAC | 3.6 VAC | 125 VDC 380 VAC | SPDT (1 Form C) | Quick Connect | 1250 W 3800 VA |
Omron Automation and Safety | 4.6 kOhms | 15 ms | 70 °C | -40 C | CSA TUV UR VDE | Chassis Mount | Sealed - Flux Protection | 10 ms | 10 A | 88 VAC/DC | 10.6 mA | Silver Alloy | Non Latching | General Purpose | 110 VAC/DC | 33 VAC | 125 VDC 380 VAC | SPDT (1 Form C) | Quick Connect | 1250 W 3800 VA |
