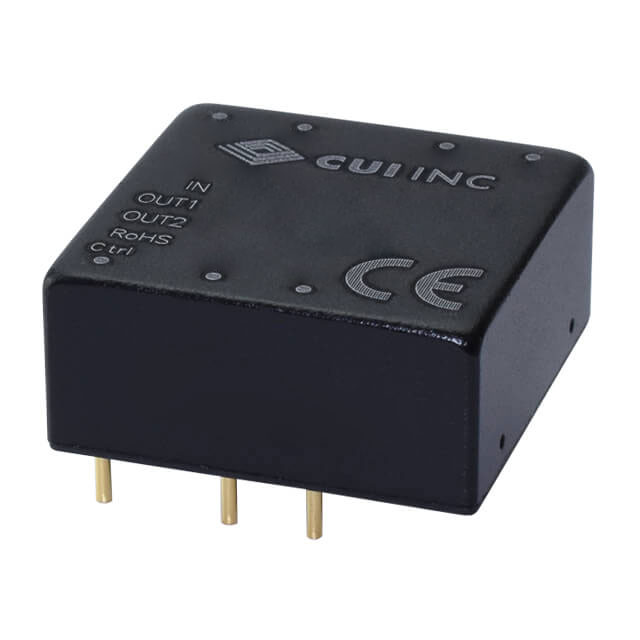

PQD10W Series
Manufacturer: CUI Inc.
Beta
⌘K
DC DC CONVERTER 5V 12V 10W
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Voltage - Input (Max) [Max] | Type | Applications | Voltage - Output 1 | Mounting Type | Package / Case | Voltage - Input (Min) [Min] | Efficiency | Current - Output (Max) | Voltage - Output 2 | Approval Agency | Number of Outputs | Voltage - Isolation | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | -40 °C | 85 °C | 1 " | 25.4 mm | 1 in | 0.46 in | 11.7 mm | 25.4 mm | 75 V | Isolated Module | ITE (Commercial) | 5 V | Through Hole | 7-DIP Module | 18 V | 84 % | 1 A 417 mA | 12 V | CE | 2 | 1.5 kV | 10 W |
CUI Inc. | -40 °C | 85 °C | 1 " | 25.4 mm | 1 in | 0.46 in | 11.7 mm | 25.4 mm | 75 V | Isolated Module | ITE (Commercial) | 5 V | Through Hole | 7-DIP Module | 18 V | 84 % | 1 A | 5 V | CE | 2 | 1.5 kV | 10 W |
