208099 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

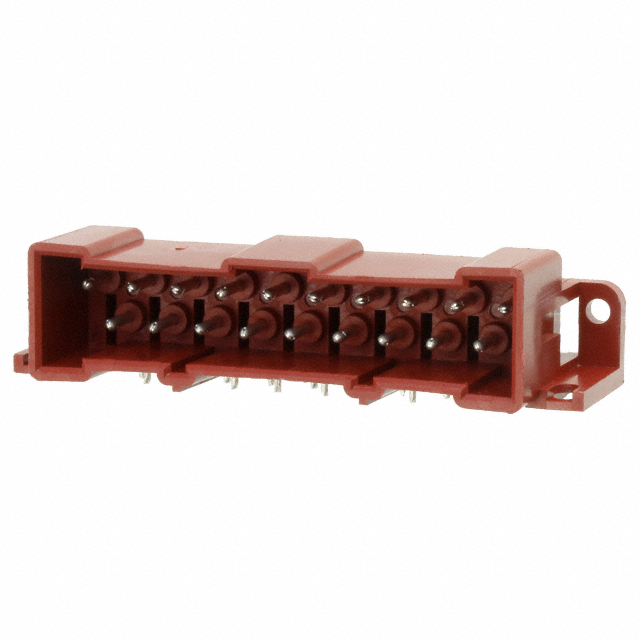

PIN HEADER ASSY,19P,METRIMATE
| Part | Features | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Rows | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Height | Insulation Height | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Pitch - Mating | Pitch - Mating | Insulation Material | Shrouding | Number of Positions Loaded | Fastening Type | Contact Finish - Post | Contact Shape | Applications | Material Flammability Rating | Contact Material | Style | Contact Length - Post [x] | Contact Length - Post [x] | Current Rating (Amps) | Contact Type | Connector Type | Insulation Color | Voltage Rating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Mounting Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Mounting Flange | 5.08 mm | 0.2 " | 2 | Tin-Lead | 150 Áin | 3.81 Ám | 0.75 in | 19.05 mm | Solder | 130 °C | -55 °C | 6.35 mm | 0.25 in | Nylon Polyamide (PA) | Shrouded - 4 Wall | All | Latch Holder | Tin-Lead | Circular | Automotive General Purpose Industrial | UL94 V-0 | Brass | Board to Board Cable | 0.12 in | 3.05 mm | 7.5 A | Male Pin | Header | Red | 600 V | 150 Áin | 3.81 Ám | Through Hole Right Angle | 19 |
