4N37 Series

Catalog

OPTOISO 5KV TRANS W/BASE 6SMD

Part	Turn On Time (Typ)	Turn Off Time (Typ)	Current Transfer Ratio (Min)	Voltage - Forward (Vf) (Typ)	Input Type	Number of Channels	Package / Case	Voltage - Output (Max)	Voltage - Isolation	Mounting Type	Output Type	Package Name	Current - Output / Channel	Current - DC Forward (If) (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Package Length	Package Width
Vishay Semiconductor Opto Division 4N37-X009	10 µs	10 µs	100 %	1.2 V	DC	1	6-SMD Gull Wing	30 V	5000 Vrms	Surface Mount	Transistor with Base	6-SMD	50 mA	60 mA	-55 °C	100 °C
Vishay Semiconductor Opto Division 4N37	10 µs	10 µs	100 %	1.3 V	DC	1		30 V	5000 Vrms	Through Hole	Transistor with Base	6-DIP	50 mA	50 mA	-55 °C	100 °C	0.3 in	7.62 mm
Vishay Semiconductor Opto Division 4N37-X007	10 µs	10 µs	100 %	1.2 V	DC	1	6-SMD Gull Wing	30 V	5000 Vrms	Surface Mount	Transistor with Base	6-SMD	50 mA	60 mA	-55 °C	100 °C

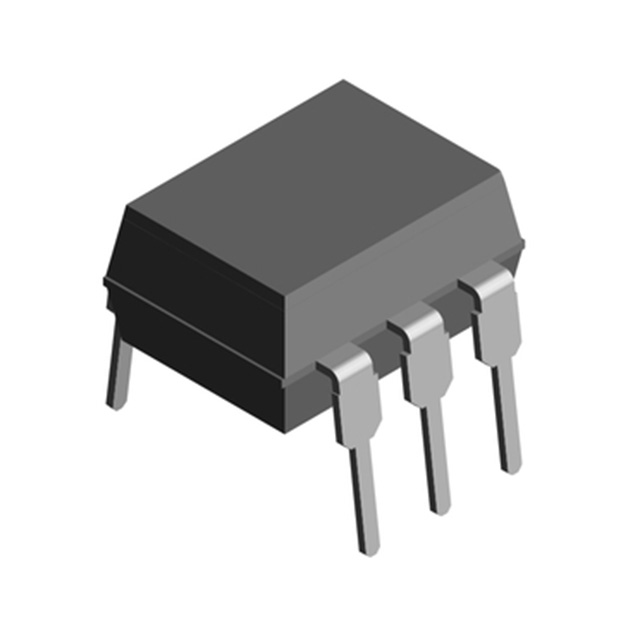

Vishay Semiconductor Opto Division 4N37-X000	10 µs	10 µs	100 %	1.2 V	DC	1		30 V	5000 Vrms	Through Hole	Transistor with Base	6-DIP	50 mA	60 mA	-55 °C	100 °C	0.3 in	7.62 mm
Vishay Semiconductor Opto Division 4N37-X006	10 µs	10 µs	100 %	1.2 V	DC	1		30 V	5000 Vrms	Through Hole	Transistor with Base	6-DIP	50 mA	60 mA	-55 °C	100 °C	10.16 mm	10.16 mm
