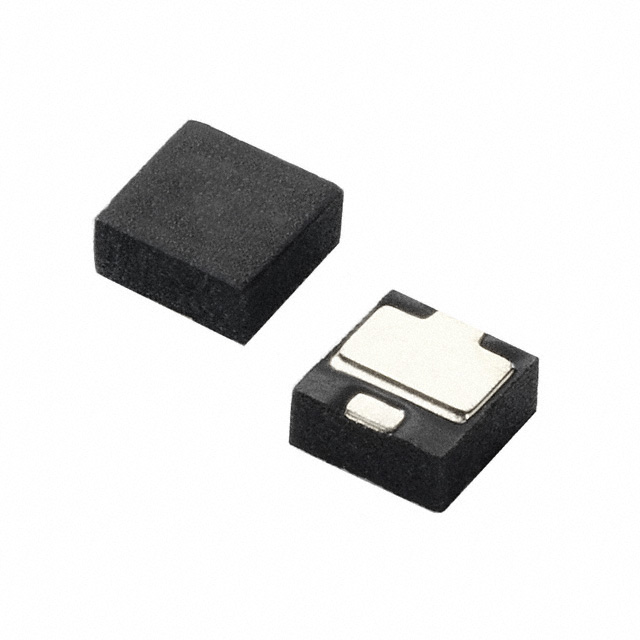

LED PROTECTOR 5V 500mA QFN
Key Features
• Reverse Battery/Power Protection
• Surge Capability > 24 A (8/20 μS)
• ESD, IEC 61000-4-2, ±8kV contact, ±15 kV air
• EFT, IEC 61000-4-4, 40A (5/50nS)
• Open LED bypass up to 500 mA
• Fast switching
• Resets after power cycle
• Low Turn-On (Trigger Voltage)
• Ideal for MR16, PAR type lamps
Description
AI
This PLED5 protector provides three methods of increasing the reliability of LED lighting: - If one of the LEDs in an array fails open, this device provides a substitute electronic path so that the array continues to function - It protects against ESD events up to ± 8 kV for contact discharges and ±15 kV for air discharges per the IEC 61000-4-2 electrostatic immunity standard. - It provides protection in the case of accidental revers battery or power connection. High reliability of lighting functions such as traffic lighting, advertising lighting, and runway lighting demand the use of a device such as the PLED5.
