2002-7551 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

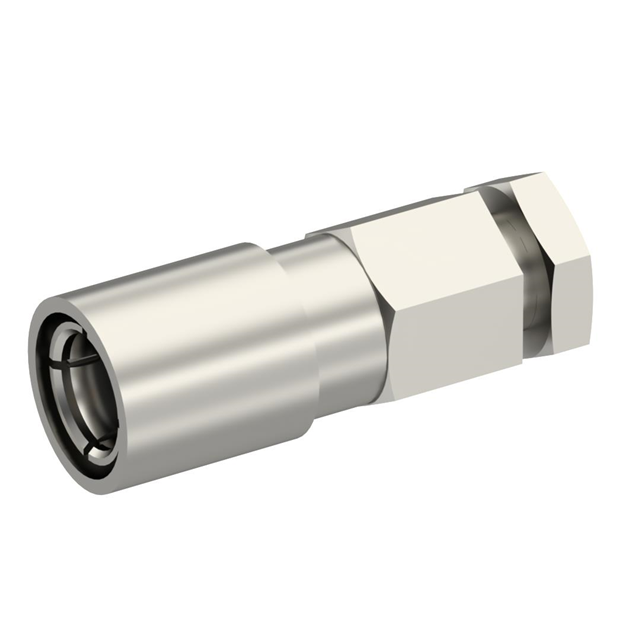

SMB F STR NA CL 2.6/50D
| Part | Cable Group | Center Contact Plating | Body Material | Mating Cycles | Dielectric Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Mounting Type | Impedance | Contact Termination | Center Contact Material | Shield Termination | Frequency - Max [Max] | Connector Type | Housing Color | Number of Ports | Connector Style | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | RD-316 RG-316 | Gold | Brass | 500 | Polytetrafluoroethylene (PTFE) | 335 V | -65 ░C | 165 °C | Nickel | Free Hanging (In-Line) | 50 Ohms | Solder | Beryllium Copper | Clamp | 4 GHz | Female Socket Plug | Silver | 1 | SMB | Snap-On |
