EFL Series

Manufacturer: ULTRAVOLT / Advanced Energy

Catalog

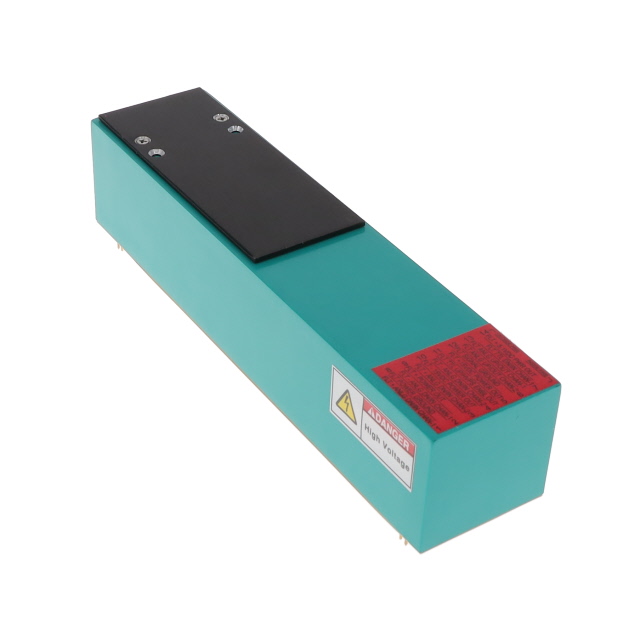

ISOLATED DC/DC CONVERTERS - CHASSIS MOUNT EFL-SERIES FLOATING-HOT-DECK POWER SUPPLY, QUAD OUTPUT, 30KV HV ISOLATION, +24VDC INPUT, +24VDC PRIMARY OUTPUT, +15/-15/+5.1VDC SECONDARY OUTPUTS, 24W, THRU-HOLE/CHASSIS MOUNT, REGULATED, TWO UP/TWO DOWN PRESCISI

Part	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 3	Operating Temperature [Max]	Operating Temperature [Min]	Type	Voltage - Output 2	Voltage - Isolation	Applications	Voltage - Input (Max) [Max]	Mounting Type	Current - Output (Max)	Voltage - Output 4	Power (Watts)	Approval Agency	Package / Case	Number of Outputs	Voltage - Input (Min) [Min]
ULTRAVOLT / Advanced Energy 30EFL24-24W-I/O-RB-M-H
ULTRAVOLT / Advanced Energy 15EFL12-12W-I/O-RB-M-E	12 V	38.1 mm	33 mm	5.7 "	1.5 "	1.3 in	144.8 mm	5.1 V	55 °C	-20 ░C	Isolated Module	15 V	15000 VDC	ITE (Commercial)	12.6 V	Through Hole	1 A 50 mA 500 µA	-15 V	12 W	CE cURus	28-DIP Module	4	11.4 V
ULTRAVOLT / Advanced Energy 15EFL24-36W-I/O-RB-H
ULTRAVOLT / Advanced Energy 15EFL24-24W-I/O-RB-M
ULTRAVOLT / Advanced Energy 15EFL12-12W-I/O-RB-H
ULTRAVOLT / Advanced Energy 30EFL24-24W-I/O-RB-E	24 V							5.1 V	55 °C	-20 ░C	Isolated Module	15 V	30 kV	ITE (Commercial)	26.4 V	Through Hole	1 A 50 mA 500 µA	-15 V	24 W	CE cURus	28-DIP Module	4	21.6 V
ULTRAVOLT / Advanced Energy 30EFL12-12W-I/O-RB-H
ULTRAVOLT / Advanced Energy 15EFL24-36W-I/O-RB-M-H
ULTRAVOLT / Advanced Energy 15EFL24-36W-I/O-RB-M-E	24 V	38.1 mm	33 mm	5.7 "	1.5 "	1.3 in	144.8 mm	5.1 V	55 °C	-20 ░C	Isolated Module	15 V	15000 VDC	ITE (Commercial)	26.4 V	Through Hole	1 A 50 mA 500 µA	-15 V	36 W	CE cURus	28-DIP Module	4	21.6 V
ULTRAVOLT / Advanced Energy 30EFL12-12W-I/O-RB-E	12 V							5.1 V	55 °C	-20 ░C	Isolated Module	15 V	30 kV	ITE (Commercial)	12.6 V	Through Hole	1 A 50 mA 500 µA	-15 V	12 W	CE cURus	28-DIP Module	4	11.4 V
