1814818 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

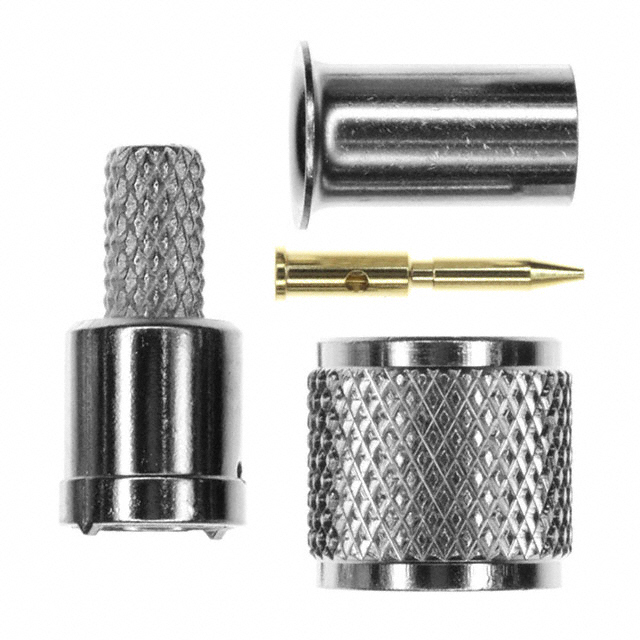

CONN MINI UHF PLUG STR CRIMP
| Part | Number of Ports | Mounting Type | Housing Color | Body Finish | Connector Type | Mating Cycles | Cable Group | Contact Termination | Dielectric Material | Frequency - Max [Max] | Shield Termination | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Connector Style | Includes | Center Contact Material | Center Contact Plating | Impedance | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 1 | Free Hanging (In-Line) | Silver | Nickel | Male Pin Plug | 500 | 141A RG-58C | Crimp | Polyoxymethylene (POM) Acetal | 2 GHz | Crimp | Zinc | 85 °C | -55 °C | Mini UHF | 1 Connector 1 Contact 1 Ferrule | Brass | Gold | Non-Constant | 335 V |
