XLMDKVG59 Series

Manufacturer: SunLED

Catalog

LED GRN/RED DIFFUSED T-1 3/4 T/H

Part	Viewing Angle	Configuration	Millicandela Rating	Lens Style	Package / Case	Wavelength - Dominant	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Lens Size	Lens Size	Current - Test [custom]	Current - Test [custom]	Lens Transparency	Lens Color	Color	Mounting Type	Height (Max) [z]	Height (Max) [Max] [z]	Millicandela Rating [custom]	Millicandela Rating [custom]

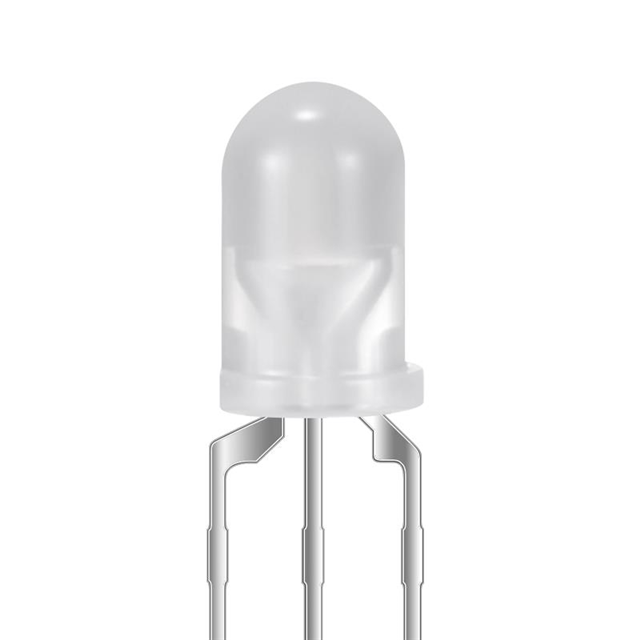

SunLED XLMDKVG59MCA	60 °	Common Anode	19 mcd 39 mcd	Round with Domed Top	Radial	570nm Green 630nm Red	574 nm 645 nm	1.95 V 2.1 V	T-1 3/4	5 mm	T-1 3/4	20 mA	20 mA	Diffused	White	Green Red	Through Hole	11.35 mm
SunLED XLMDKVG59M	30 °	Common Cathode		Round with Domed Top	Radial - 3 Leads	570nm Green 630nm Red	574 nm 645 nm	1.95 V 2.1 V	T-1 3/4	5 mm	T-1 3/4	20 mA	20 mA	Diffused	White	Green Red	Through Hole		8.6 mm	198 mcd	178 mcd
