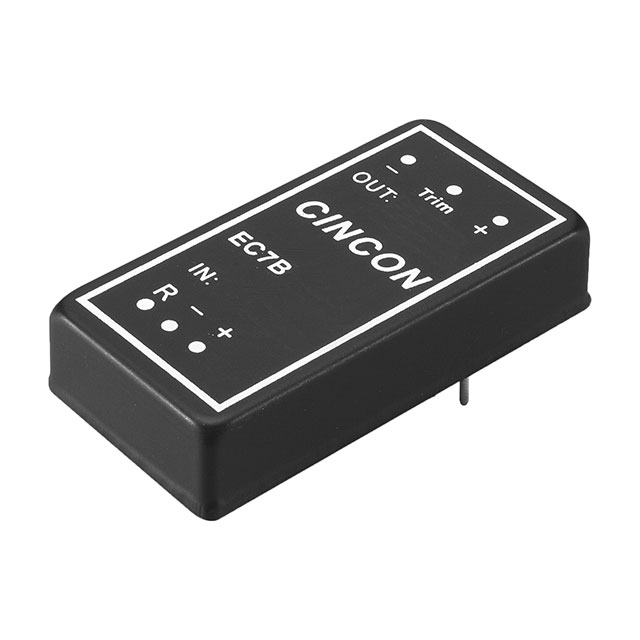

EC7B-48 Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

DC DC CONVERTER 1.8V 11W

Part	Voltage - Input (Max) [Max]	Voltage - Output 1	Features	Standard Number	Mounting Type	Size / Dimension	Efficiency	Package / Case	Voltage - Isolation	Type	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Voltage - Input (Min) [Min]	Approval Agency	Current - Output (Max) [Max]	Power (Watts)	Control Features	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2
Cincon Electronics Co. LTD EC7B-48S18	75 V	1.8 V	OCP OVP Remote On/Off SCP UVLO	60950-1	Through Hole	0.4 in 10.2 mm 25.4 mm 50.8 mm	86 %	6-DIP Module	1.5 kV	Isolated Module	ITE (Commercial)	-40 °C	85 °C	1	36 V	CE cURus	6 A	11 W	Active High Enable
Cincon Electronics Co. LTD EC7B-48D15S	75 V	15 V	OCP OVP Remote On/Off SCP UVLO	60950-1	Through Hole	0.4 in 10.2 mm 25.4 mm 50.8 mm	89 %	6-DIP Module	1.5 kV	Isolated Module	ITE (Commercial)	-40 °C	85 °C	2	36 V	CE cURus		20 W	Active High Enable	670 mA	670 mA	-15 V
Cincon Electronics Co. LTD EC7B-48D12S	75 V	12 V	OCP OVP Remote On/Off SCP UVLO	60950-1	Through Hole	0.4 in 10.2 mm 25.4 mm 50.8 mm	90 %	6-DIP Module	1.5 kV	Isolated Module	ITE (Commercial)	-40 °C	85 °C	2	36 V	CE cURus		20 W	Active High Enable	835 mA	835 mA	-12 V
Cincon Electronics Co. LTD EC7B-48S12	75 V	12 V	OCP OVP Remote On/Off SCP UVLO	60950-1	Through Hole	0.4 in 10.2 mm 25.4 mm 50.8 mm	89 %	6-DIP Module	1.5 kV	Isolated Module	ITE (Commercial)	-40 °C	85 °C	1	36 V	CE cURus	1.67 A	20 W	Active High Enable
Cincon Electronics Co. LTD EC7B-48S05	75 V	5 V	OCP OVP Remote On/Off SCP UVLO	60950-1	Through Hole	0.4 in 10.2 mm 25.4 mm 50.8 mm	90 %	6-DIP Module	1.5 kV	Isolated Module	ITE (Commercial)	-40 °C	85 °C	1	36 V	CE cURus	4 A	20 W	Active High Enable
Cincon Electronics Co. LTD EC7B-48S18S	75 V	1.8 V	OCP OVP Remote On/Off SCP UVLO	60950-1	Through Hole	0.4 in 10.2 mm 25.4 mm 50.8 mm	86 %	6-DIP Module	1.5 kV	Isolated Module	ITE (Commercial)	-40 °C	85 °C	1	36 V	CE cURus	6 A	11 W	Active High Enable
Cincon Electronics Co. LTD EC7B-48D15	75 V	15 V	OCP OVP Remote On/Off SCP UVLO	60950-1	Through Hole	0.4 in 10.2 mm 25.4 mm 50.8 mm	89 %	6-DIP Module	1.5 kV	Isolated Module	ITE (Commercial)	-40 °C	85 °C	2	36 V	CE cURus		20 W	Active High Enable	670 mA	670 mA	-15 V
Cincon Electronics Co. LTD EC7B-48S15S	75 V	15 V	OCP OVP Remote On/Off SCP UVLO	60950-1	Through Hole	0.4 in 10.2 mm 25.4 mm 50.8 mm	88 %	6-DIP Module	1.5 kV	Isolated Module	ITE (Commercial)	-40 °C	85 °C	1	36 V	CE cURus	1.33 A	20 W	Active High Enable
Cincon Electronics Co. LTD EC7B-48S25S	75 V	2.5 V	OCP OVP Remote On/Off SCP UVLO	60950-1	Through Hole	0.4 in 10.2 mm 25.4 mm 50.8 mm	87 %	6-DIP Module	1.5 kV	Isolated Module	ITE (Commercial)	-40 °C	85 °C	1	36 V	CE cURus	6 A	15 W	Active High Enable
Cincon Electronics Co. LTD EC7B-48S05S	75 V	5 V	OCP OVP Remote On/Off SCP UVLO	60950-1	Through Hole	0.4 in 10.2 mm 25.4 mm 50.8 mm	90 %	6-DIP Module	1.5 kV	Isolated Module	ITE (Commercial)	-40 °C	85 °C	1	36 V	CE cURus	4 A	20 W	Active High Enable
