WM011 Series

Manufacturer: Serpac

Catalog

BOX ABS GRAY 3.6"L X 2.25"W

Part	Weight	Weight	Color	Thickness	Thickness	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Material Flammability Rating	Features	Ratings	Area (L x W) [custom]	Area (L x W) [custom]	Design	Container Type	Height	Height	Material	Area (L x W)	Area (L x W)
Serpac WM011,GY	0.117 lb	53.07 g	Gray	2.54 mm	0.1 in	2.25 in	3.6 "	57.15 mm	91.44 mm	UL94 HB	Mounting Flange PCB Supports Wall Mount	IP40 NEMA 1	8.1 in²	52.3 cm²	Cover Included	Box	27.94 mm	1.1 in	ABS Plastic
Serpac WM011R,BK	0.117 lb	53.07 g	Black	2.54 mm	0.1 in	2.27 in	3.6 "	57.66 mm	91.44 mm	UL94 HB	Front Access Mounting Flange PCB Supports Wall Mount	IP40 NEMA 1			Cover Included	Box	27.94 mm	1.1 in	ABS Plastic	52.7 cm²	8.17 in²

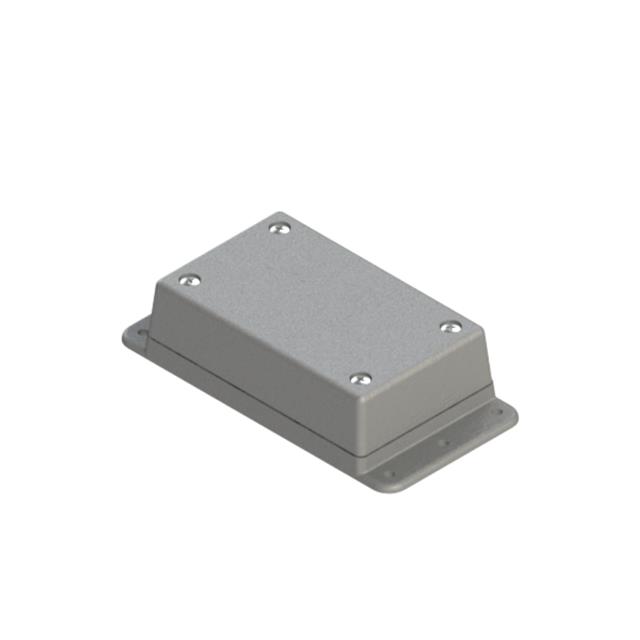

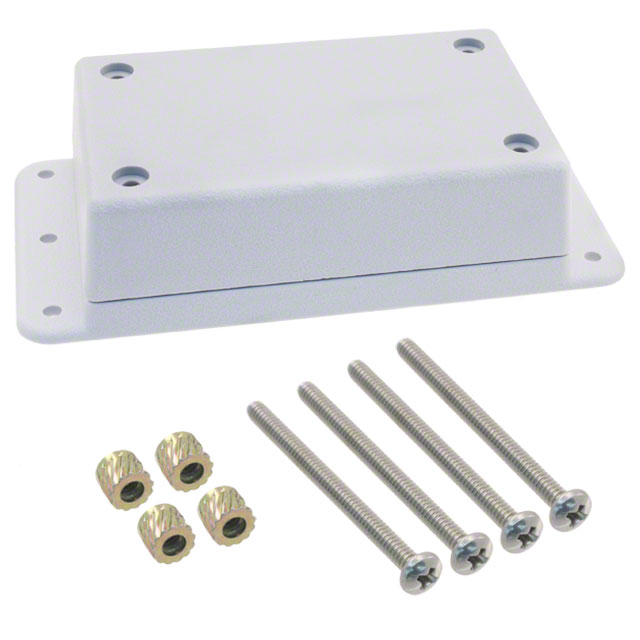

Serpac WM011R,GY	0.117 lb	53.07 g	Gray	2.54 mm	0.1 in	2.27 in	3.6 "	57.66 mm	91.44 mm	UL94 HB	Front Access Mounting Flange PCB Supports Wall Mount	IP40 NEMA 1			Cover Included	Box	27.94 mm	1.1 in	ABS Plastic	52.7 cm²	8.17 in²
Serpac WM011I,GY	0.117 lb	53.07 g	Gray	2.54 mm	0.1 in	2.25 in	3.6 "	57.15 mm	91.44 mm	UL94 HB	Mounting Flange PCB Supports Wall Mount	IP40 NEMA 1	8.1 in²	52.3 cm²	Cover Included	Box	27.94 mm	1.1 in	ABS Plastic

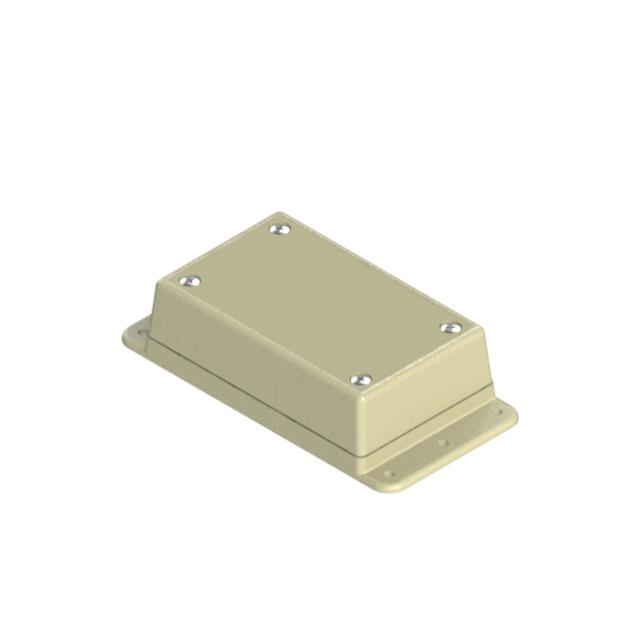

Serpac WM011RI,AL	0.117 lb	53.07 g	Almond	2.54 mm	0.1 in	2.27 in	3.6 "	57.66 mm	91.44 mm	UL94 HB	Front Access Mounting Flange PCB Supports Wall Mount	IP40 NEMA 1			Cover Included	Box	27.94 mm	1.1 in	ABS Plastic	52.7 cm²	8.17 in²

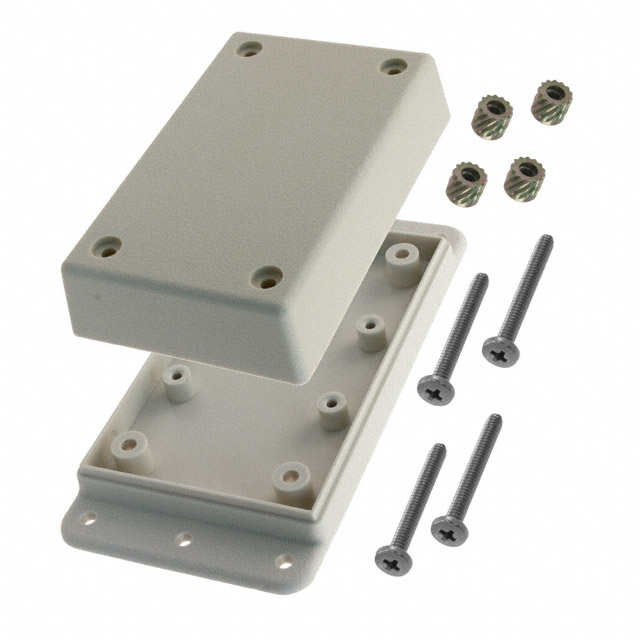

Serpac WM011R,AL	0.117 lb	53.07 g	Almond	2.54 mm	0.1 in	2.27 in	3.6 "	57.66 mm	91.44 mm	UL94 HB	Front Access Mounting Flange PCB Supports Wall Mount	IP40 NEMA 1			Cover Included	Box	27.94 mm	1.1 in	ABS Plastic	52.7 cm²	8.17 in²

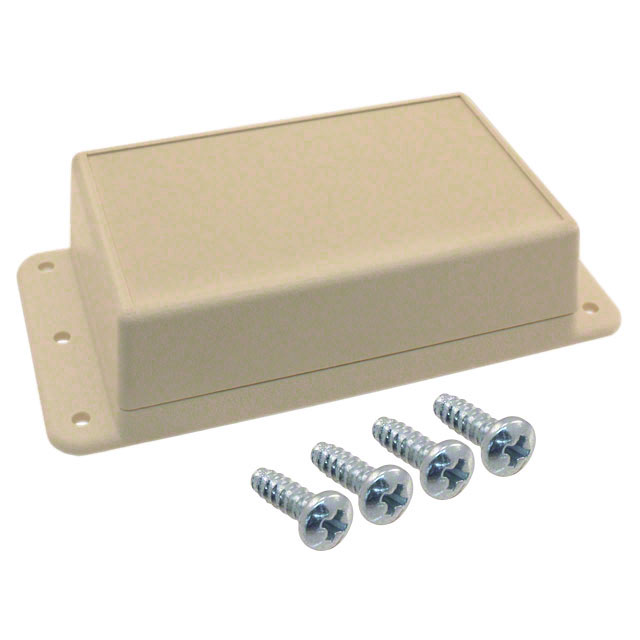

Serpac WM011I,AL	0.117 lb	53.07 g	Almond	2.54 mm	0.1 in	2.25 in	3.6 "	57.15 mm	91.44 mm	UL94 HB	Mounting Flange PCB Supports Wall Mount	IP40 NEMA 1	8.1 in²	52.3 cm²	Cover Included	Box	27.94 mm	1.1 in	ABS Plastic
Serpac WM011I,BK	0.117 lb	53.07 g	Black	2.54 mm	0.1 in	2.25 in	3.6 "	57.15 mm	91.44 mm	UL94 HB	Mounting Flange PCB Supports Wall Mount	IP40 NEMA 1	8.1 in²	52.3 cm²	Cover Included	Box	27.94 mm	1.1 in	ABS Plastic	52.3 cm²	8.1 in²

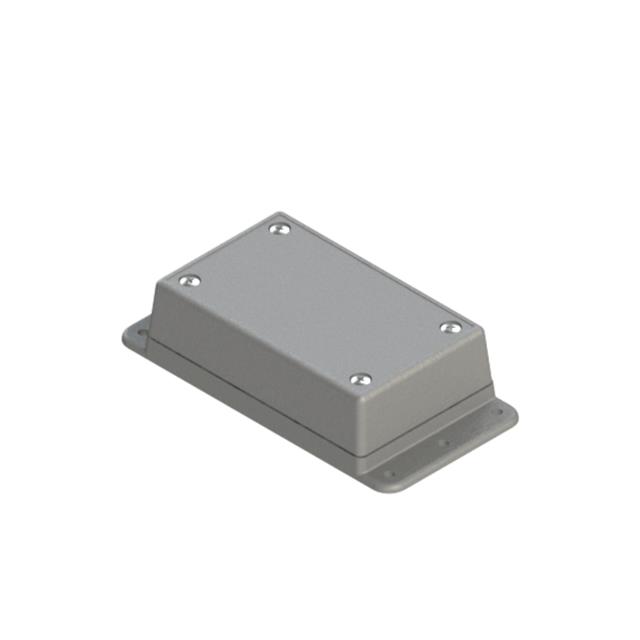

Serpac WM011RI,GY	0.117 lb	53.07 g	Gray	2.54 mm	0.1 in	2.27 in	3.6 "	57.66 mm	91.44 mm	UL94 HB	Front Access Mounting Flange PCB Supports Wall Mount	IP40 NEMA 1			Cover Included	Box	27.94 mm	1.1 in	ABS Plastic	52.7 cm²	8.17 in²
